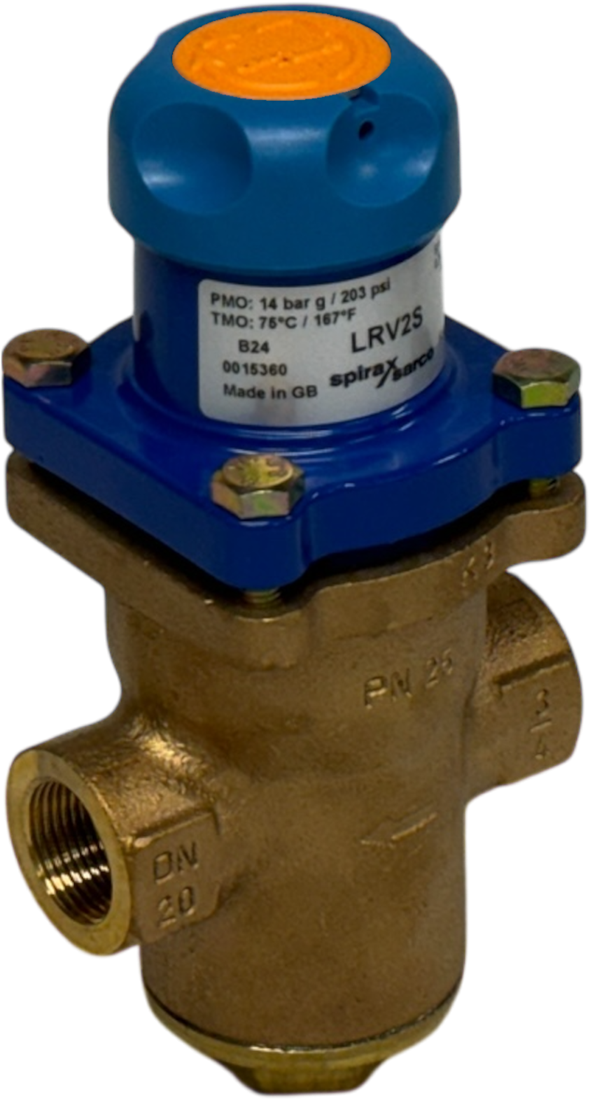

LRV2S Gunmetal Pressure Reducing Valves
The LRV2S is a direct-acting pressure reducing valve suitable for liquids.
Available Types:
LRV2S: with stainless steel (316Ti/316L) bellows membrane
For the reduced pressure, three control ranges are possible depending on the spring with which the controller is equipped. A color code on the control knob allows distinguishing between different springs.
- Gray spring: 0.35 to 1.7 bar
- Green spring: 1.4 to 4 bar
- Orange spring: 3.5 to 8.6 bar
In case of overlap between two control ranges, always choose the lowest control range to ensure better control.
Diameters and Connections: ", ", and 1": BSP internal thread (BS 21 Rp).
On request: NPT.
Pressure and temperature limits:
see datasheet
The LRV2S must be installed in a horizontal pipeline with the flow according to the arrow on the housing.
