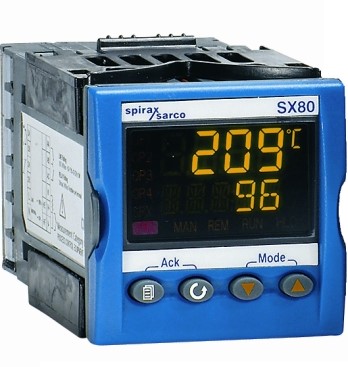

Process Controller SX80
The SX80 process regulator, 1/16 DIN, for panel mounting is suitable for controlling systems with one or multiple setpoints. The SX80 can be used in conjunction with Spirax-Sarco pneumatic (PN) and electric (EL) servomotors for control valves with associated sensors. The SX80 is equipped with both VMD control output (VALVE MOTOR DRIVE 3-point control) and an analog control output (4-20 mA), and distinguishes itself with its quick start codes for easy commissioning.
SX80 Features:
- Universal input RTD, thermocouples, mA and mV, VMD (Valve Motor Drive), mA or V for continuous control, relays, or logic switching contacts.
- Power supply For external transmitter 18Vdc.
- Text messages: Scrollable text messages can be set for alarm notifications of process parameters.
- Codes: 5-digit codes for startup and operation.
Certificates:
The process regulator complies with directive 93/68/EEC and is subject to the regulations of electrical devices EN 61010-1:90.
EMC emission: EN 61326-1:1997 class B (including improvements A1, A2, and A3).
EMC immunity: EN 61326-1:19.
