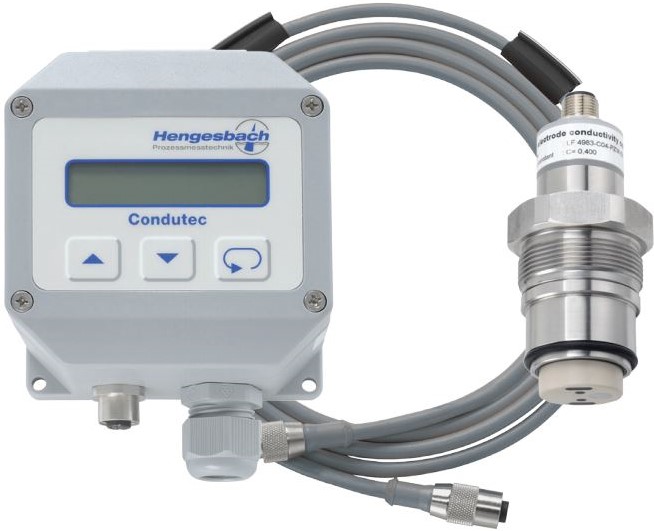

Conductivity sensor Condutec with measuring cell 3983 split version
Conductivity measurement in separate version,
4 electrode version
Wall housing: polyamide 100 x 100 x 60 mm with integrated digital display
Electrical connection M12
Measuring range freely programmable from:
0..5.00 uS/cm to max. 0..500 mS/cm and
0..0.50 uS/cm to max. 0..50.0 uS/cm
1 output 4-20 mA, 2-wire for conductivity.
galvanically isolated.
1 output 4-20 mA, 2-wire for temperature.
Programmable range -40.. +160 °C
2 alarm outputs
Supply voltage 14..30 VDC
+
4-electrode conductivity measuring cell
Range 0..20 US/cm to 0..500 mS/cm
Cell constant C = 0.4
Working temperature: -10..+120 °C
Sterilizable 1 hour up to 140 °C
Pressure resistant up to 16 bar
Process connection: Hygienic universal connection with flush O-ring seal, connection system PZM
Temperature measurement with Pt1000 according to DIN IEC751
