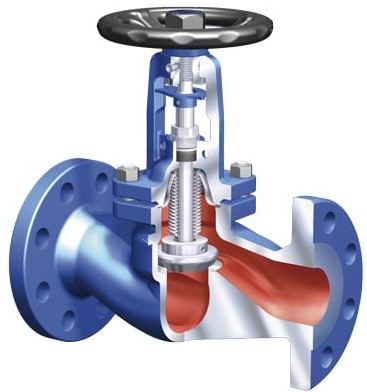

ARI-FABA Plus ANSI-Stop valve - straight through with bellows seal
Free of maintenance stop valve with bellow seal - metallic sealing
ARI-FABA®-Plus ANSI
- Class 150 / Class 300
- Straight through with flanges
- EN ISO 15848-1 / TA - Luft TÜV-Test-No. TA 07 2016 C04
ARI-FABA®-Plus ANSI
- Class 300
- Straight through with screwed sockets
- Straight through with socket weld ends
- EN ISO 15848-1 / TA - Luft TÜV-Test-No. TA 07 2016 C04
ARI-FABA®-Supra I ANSI
ARI-FABA®-Supra C ANSI
- Class 150 / Class 300
- Straight through with flanges
- EN ISO 15848-1 / TA - Luft TÜV-Test-No. TA 07 2016 C04
ARI-FABA®-Supra I ANSI
ARI-FABA®-Supra C ANSI
- Class 300
- Straight through with screwed sockets
- Straight through with socket weld ends
- EN ISO 15848-1 / TA - Luft TÜV-Test-No. TA 07 2016 C04
Features:
- Double wall bellows seal as standard
- Plug with marginal seat
- Stem with fine thread
- Flat lubricating nippleLocking device, countersunk
- Bonnet optimised for accessories
- Secondary sealing: gland packing
- Position indicator as standard
- Non-rotation lock for each nominal diameter
Additional features ARI-FABA®-Supra:
- Bellows seal welded to bonnet
- Bellows seal 10.000 load cycles
- Industrial version: Bellows seal shielded
- Chemical version: Bellows seal flushed
- Stem back seal
- Yoke gasket, double chambered
- Welded seat
- Actuator retrofitting
eClass-No.: 37010201
Application:
Industry, powerstations, flue gas purification plant, processing technology, gas supply, vapour facilities, recycling facilities, vacuum facilities, hot water, heating technology, district heating, thermal oil applications, general plant manufacturing, etc.
Medium:
Steam, gases, hot water, thermal oil, process water, vacuum facilities, ammonia etc
ARI-FABA Plus Ventielinformatie
ARI-FABA Plus ventielen met de volgende specificaties:
The type numbers ARI-FABA Bellow valves of ARI-Armaturen which fall below are
ARI-FABA Plus Valve Specifications
ARI-FABA Plus Valve Specifications
- ARI-FABA Plus ANSI 32041 ANSI150 SA216WCB flange Straight through
- ARI-FABA Plus ANSI 32041 ANSI150 SA216WCB flange Straight through
- ARI-FABA Plus ANSI 35041 ANSI300 SA216WCB flange Straight through
- ARI-FABA Plus ANSI 45049-2 ANSI300 SA105 screwed socket Straight through
- ARI-FABA Plus ANSI 45049-3 ANSI300 SA105 socket end Straight through
- ARI-FABA Plus ANSI 45049-3 ANSI300 SA105 screwed socket Straight through
