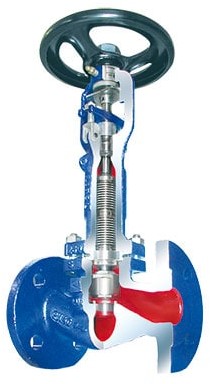

ARI-FABA LA Stop valve - straight through with long bellow and bellows seal
Benefit from the proven power of our 100% tight shut-off technology!
For all standard applications
Even better performance…
- through the design of the bonnet (now even more suitable for harsh industrial environments, i.e. water hammer, due to to a more robust design).
- due to the reinforced bellows welded to the shaft instead of the plug (vibration is no more) transferred directly from the plug to the bellows).
Easy to use …
- due to ergonomic handle with environmentally friendly friendly, corrosion resistant cataphoretic coating.
- due to weight reduction (optimized hood design)
- through the recessed grease nipple and the separate, flat lock.
- due to the easy-to-install limit switch – not necessary loosen the hood screws (patented).
Features:
- Bellows seal out of media flow path
- Double wall bellows seal as standard
- DN15-300: plug with marginal seat
- Lubricating nipple as locking device as standard
- Stem with bellows seal
- Secondary sealing: gland packing
- Position indicator as standard
- Non-rising handwheel
- Non-rotation lock for each nominal diameter
- External stem sthread
- Stem with roll hardenend tread
- Favourable zeta-values als for small nominal diameters
- Gland packing sleeve with pivot mounted bolts
eClass-No.: 37010201
Application:
Industry, powerstations, flue gas purification plant, processing technology, gas supply, vapour facilities, recycling facilities, vacuum facilities, hot water, heating technology, district heating, thermal oil applications, general plant manufacturing, etc.
Medium:
Steam, gases, hot water, thermal oil, process water, vacuum facilities, ammonia etc
The type numbers ARI-FABA Bellow valves of ARI-Armaturen which fall below are:
- AR 34.044
- AR 35.044
- AR 45.067
- AR 35.067
- AR 35.068
