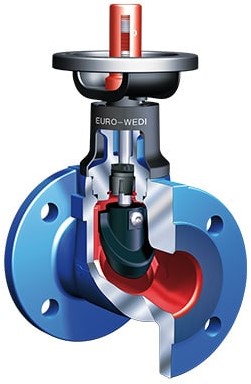

ARI-EURO-WEDI Stop valve - straight through with flanges and soft seal - Face-to-face length FTF-14
EURO-WEDI® The soft-seated isolation valve
Reliably tight due to proven plug / seat geometry!
Your advantages with the proven plug / seat geometry
Optimised handling due to lower operating torque.
Increased durability due to the gentle insertion of the plug into the seating area.
Improved control characteristic due to throttling plug with a flow friendly shape.
Absolutely reliable closing due to self-aligning throttling plug (Dual function: isolation and throttling).
Extra-tight shut-off due to the patented stem seal system (combination of a seal and scraper) – surface
deposits reduced to a minimum.
Long lifetime means higher profitability
Corrosion protection (Insulating cap with integrated dew point barrier).
Standard non-rotation feature due to double guided plug.
Durable plug surface quality up to +120°C / +130°C for short time periods (vulcanised EPDM).
Fine-threaded stem (slow opening and closing).
Convenient handling, even when space is restricted
Internal travel limiter as standard (reduced installation height).
Locking device as standard.
Non-rising handwheel saves space (handwheel is upright with rising stem).
Open/closed indicator as standard (precise indication of the travel position).
Flexible in use
Choice of valve (FTF-1) or short face-to-face length (FTF-14) as well as PN 16 socket or ½” to 2” screwed socket connection. Can also be supplied as a hood valve on request.
In DN 15 to DN 200 // PN 6 to PN 16 //
Material: Cast iron.
Environmentally friendly, economical, safe
Energy and cost savings due to low zeta values (up to approx. 1,2).
More profitability because no maintenance required.
Certified safety (CE certification according to Pressure Equipment Directive).
Application:
Heating facilities
AIR conditioning facilities
Medium:
Water
Water with cold-protection
