ARI-CHECKO V Check valve, metallic sealing
Features:
Solid plug / valve plate made of stainless material
solid seat made of stainless material
Re-setting spring made of stainless steel
precise Plug / valve plate guidance

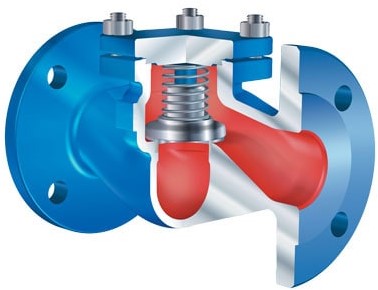

Straight through with flanges
Angle pattern with flanges
Straight through with butt weld ends

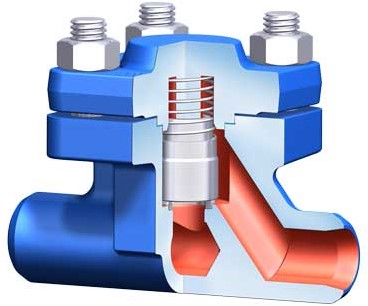

Y-pattern with butt weld ends
Standard:
Metallic sealing
Leakage rate C acc. to DIN EN 12266-13230-3
Optional:
PTFE-soft sealing (max 120°C), leakage rate A acc. to DIN EN 12266-1
eClass-No.: 37010801
Application:
Recycling facilities, chemical industry, hospital technology, process water installations, installations with aggressive media
Medium:
Process water, aggressive media, etc.
ARI-CHECKO V Check Valves
Below are the model numbers of ARI-Armaturen's ARI-CHECKO V Check Valves that fall into this category:
- ARI-CHECKO V 10003, PN 6 EN-JL1040 flange Straight
- ARI-CHECKO V 12003, PN 16 EN-JL1040 flange Straight
- ARI-CHECKO V 22003, PN 16 EN-JS1049 flange Straight
- ARI-CHECKO V 23003, PN 25 EN-JS1049 flange Straight
- ARI-CHECKO V 34003, PN 25 1.0619+N flange Straight
- ARI-CHECKO V 35003, PN 40 1.0619+N flange Straight
- ARI-CHECKO V 35030, PN 40 1.0619+N butt weld end Straight
- ARI-CHECKO V 35063, PN 40 1.0619+N butt weld end Y-pattern
- ARI-CHECKO V 38003....30, PN160 1.0619+N flange Straight
- ARI-CHECKO V 45003, PN 40 10460 flange Straight
- ARI-CHECKO V 45030, PN 40 10460 butt weld end Straight
- ARI-CHECKO V 46003....40, PN 63 10460 flange Straight
- ARI-CHECKO V 48003....40, PN160 10460 flange Straight
- ARI-CHECKO V 48030....40, PN160 10460 butt weld end Straight
- ARI-CHECKO V 52039, PN 16 14408 flange Y-pattern
- ARI-CHECKO V 55039, PN 40 14408 flange Y-pattern
- ARI-CHECKO V 86003....81, PN 63 17335 flange Straight
- ARI-CHECKO V 88003....81, PN160 17335 flange Straight
- ARI-CHECKO V 88030....80, PN160 15415 butt weld end Straight
- ARI-CHECKO V 88030....81, PN160 17335 butt weld end Straight
