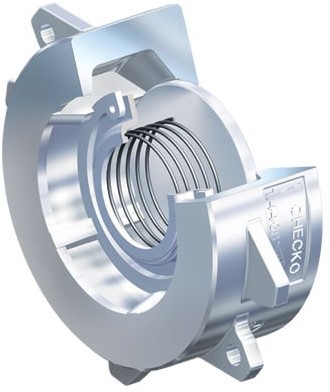

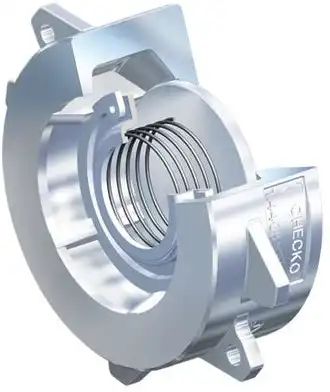

ARI-CHECKO 55.001 Wafer-typ flange-Check valve
Disc check valve in clamping version
Features:
Solid plug / valve plate made of stainless material
solid seat made of stainless material
Re-setting spring made of stainless steel
precise Plug / valve plate guidance
Standard:
Metallic sealing
Leakage rate BN2/B03 acc. to DIN 3230-3
Optional:
EPDM-soft sealing (max 120°C), leakage rate A acc. to DIN EN 12266-1
NBR-soft sealing (max 80°C), leakage rate A acc. to DIN EN 12266-1
FPM (Viton)-soft sealing (max 150°C), leakage rate A acc. to DIN EN 12266-1 (not for hot water useable)
eClass-No.: 37010801
Application:
Recycling facilities, chemical industry, hospital technology, process water installations, installations with aggressive media
Medium:
Process water, aggressive media, etc.
