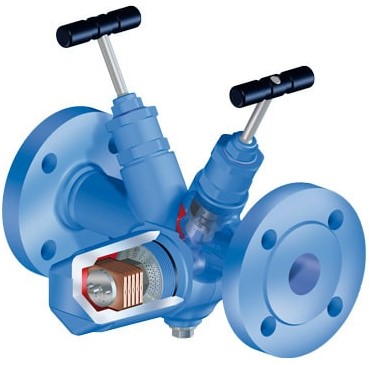

ARI-CONA All-in-one Bimetallic steam trap with flanges and integrated inlet and outlet valves
Compact condensate discharge in a multi-valving system!
Patented &ndash Integrated system comprises a steam trap, stop valve, strainer, check valve and drain valve! Up to 80% reduction in pipe connections.
Now also with DIN and ANSI face-to-face dimensions!
Economical through integrated stop valves (eliminates two stop valves) &ndash patented design (DE 10 2006 041 132).
Variable, modular design guarantees easy servicing: Replacement of the controller or conversion to other steam trap types without completely disturbing the pipework replace-ment of integrated valves by changing the valve bonnet.
Economical through time and cost savings because piping is reduced to a minimum (the number of pipe connections can be reduced from as many as twelve to just one or two).
Integrated drain valve provides optimised safety.
Manufactured from strong materials for maximum durability, robustness and resistance to water hammer.
Multifunctional because the system features integrated non-return protection.
Flexible in use through variable mounting position (horizontal or vertical).
Gasketless design guarantees an extended lifetime (metal sealing &ndash CONA® B/M/TD).
Connection types: New from ARI! Now also available in DIN EN 26554 (face-to-face dimensions).
Choice of butt weld ends / socket weld ends / screwed
sockets (length acc. to company standard or as specified
by customer).
Nominal diameter:
DN 15, DN 20, DN 25 ½"-1"
Nominal pressure:
PN 40, ANSI CIass 300
Materials:
Forged steel, stainless steel
Application:
For discharge of condensate with limited sub-cooling
Medium:
Steam, condensate, etc.
