ARI CONA® Control Patented test system for remote monitoring
Monitoring system for steam traps / External test chamber
Steam traps are required to operate continuously. Early detection of malfunctions is therefore vital. Unlike conventional systems, CONA® Control does not measure
the conductivity of the condensate but the temperature (patented).
If a predefined variable temperature range is exceeded, the system reports continuous steam leakage a low temperature is interpreted as blockage of the steam trap.
Fast, efficient, reliable &ndash and an important energy saver.
How CONA® Control benefits you:
Precision:

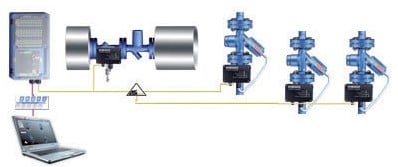

individual error messages for every single steam trap in a matter of seconds thanks to the ASI bus wiring (as well as optional networking with a higher-level bus system).
Speed:
dynamic error reporting because the steam traps are monitored individually and continuously (unnecessary energy losses are eliminated).
Efficiency:
your system works more efficiently because error messages indicate leakage or blockage of the steam trap.
Reliability:
the temperature gauge is exceptionally reliable (insensitive to deposits on the sensor, e.g. magnetite).
Economy:
prompt error reporting extends the lifetime of your system and guarantees trouble-free production processes (preventing water hammer and saving energy).
Convenience:
optimum handling because there is no need for a separate handheld unit (a local indication is always provided) and you can define variable temperature ranges.
Application:
Individual error reports on every single steam trap in a matter of seconds thanks to the ASI bus wiring (and optional networking with higher-level bus systems)
Medium:
Steam, condensate, gases with liquid components, etc.
