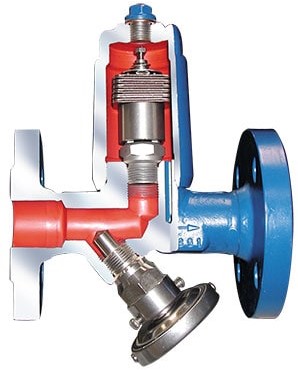

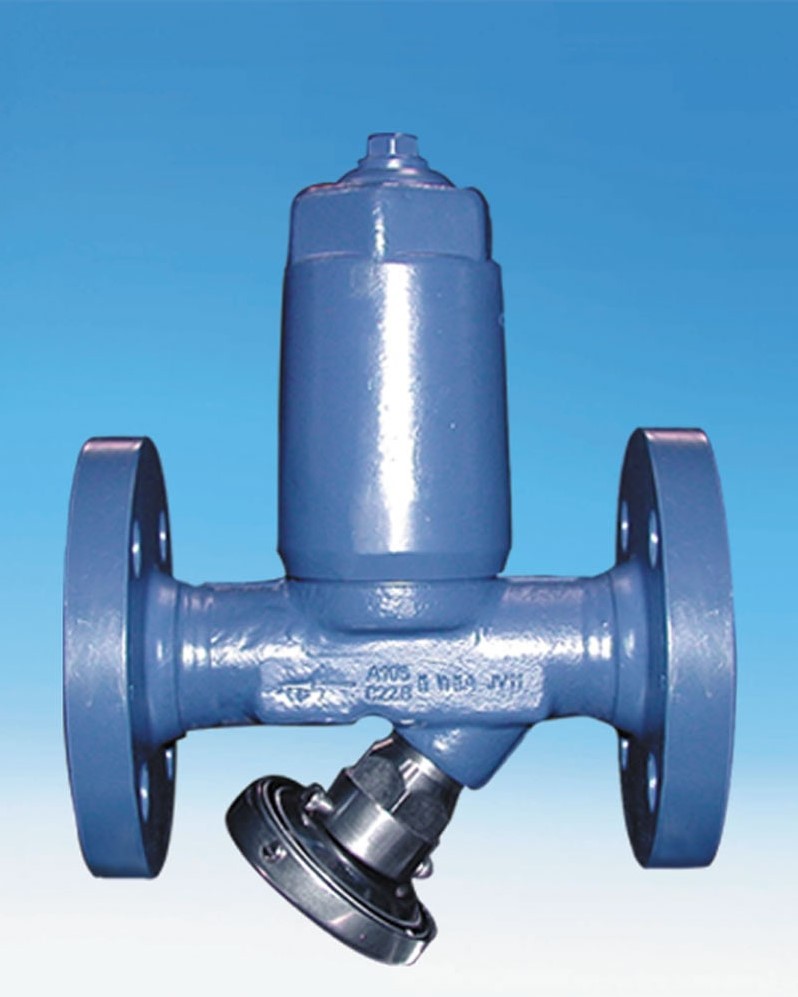

Ari-Cona 645/647 Condensate discharge temperature limiter
Features:
Steam trap for the discharge of condensate without re-evaportion at adjustable condensate temperatures (temperature range from 60ºC up to 140ºC)
With corrosion- and waterhammer resistant bimetallic controller
Automatic air-venting during start-up and operation of the installation
Integrated non return protection
With inside strainer or with outside strainer
Subcooling of condensate is continuously adjustable (observe the operation instructions)
The exchange of the controller is possible without disturbing te pipe connections
For the utilization in warm water and hot water plants
Connection types:
Flanges
Screwed sockets
Socket weld ends
But weld ends
eClass No.: 37019090
Application:
For the return temperature limitation of a trace heating
Media:
steam, condensate, etc
