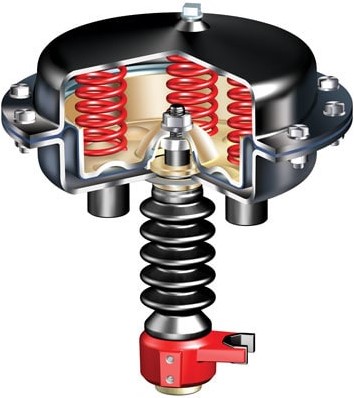

ARI Pneumatic actuator DP
Features:
- Compact design
- Actuator with rolling diaphragm
- Actuator mountable in any postion
- Travel up to 120 mm
- DP32-34: direct or reverse acting
- Burnished stem protected by bellow
- Max. air supply pressure 6 bar
- High spring thrust
- Maintenance-free O-ring sealing with flexible guiding
- Assembly of additional devices acc. to DIN IEC 60534-6
- Operative ambient temperatures -10ºC up to +80ºC (DP32-34 Tri optional: -50ºC up to +80ºC)
- Favourable size / performance ratio
Optional:
C5-M design for DP32-34 Tri -40ºC up to +80ºC)
The type numbers Pneumatic actuators of ARI-Armaturen which fall below are:
- ARI DP30
- ARI DP32
- ARI DP33
- ARI DP34
- ARI DP34T
- ARI DP34Tri
- ARI DP35
Application:
Industrial installations, processing technology, plant manufacturing, etc.
