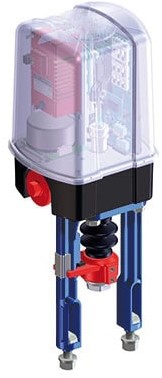

PREMIO-Plus 2G Electric actuator ARI-PREMIO-Plus 2G
New from ARI: PREMIO®-Plus 2G with BLDC motor for significantly reduced power consumption
New: Brushless DC motor (BLDC)
New BLDC motor generation, exceptionally smooth and quiet operation due to the circular rotating
field
Significantly reduced power consumption due to increased efficiency
High cyclic duty factor (CDF) even at high actuating forces because self-heating of the motor is restricted
to a minimum
Reliable position detection due to integrated Hall sensors Energy efficient widevoltage power supply
Greater flexibility because the switched-mode power supply is available as a separate retrofit
Wide-voltage power supply ensures compatibility with a broad voltage range (AC from 90 to 264 V / 47 to
63 Hz or DC from 137 to 370 V)
New: Standard actuator for 24 V AC/DC
Variable speed setting with switches allows local selection of the control speed
Variable speed control extends the gear lifetime
High durability and precision because small positional deviations are approached at low speed
Improved Economy Function, due to an efficient and low-wearing conversion of control signals
Energy efficient widevoltage power supply
Greater flexibility because the switched-mode power supply is available as a separate retrofit
Wide-voltage power supply ensures compatibility with a broad voltage range (AC from 90 to 264 V / 47 to
63 Hz or DC from 137 to 370 V)
Additional benefits of the PREMIO® -Plus 2G
Automatic adjustment to the valve lift due to the self-initialisation feature
Manual override
IP65
Actuating force: 2.2 kN, 5 kN, 12 kN or 15 kN
Permissible ambient temperature: -20°C to +70°C
Priority control for 3-point signals, e.g. for anti-freeze function
Tight closing function
Detection and suppression of interference on the signal line
Automatic fault detection (including emergency functionality)
Integrated humidity sensor with heating elements avoids condensation
Position and warning signal via relay contact
Modular design for optional accessories:
Fail-safe function closes on power failure
Potentiometer
Position feedback
PID process controller
Applications:
Industrial installations, processing technology, plant manufacturing, etc.
