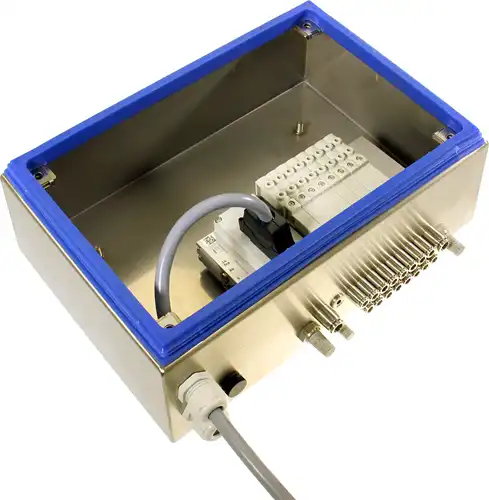

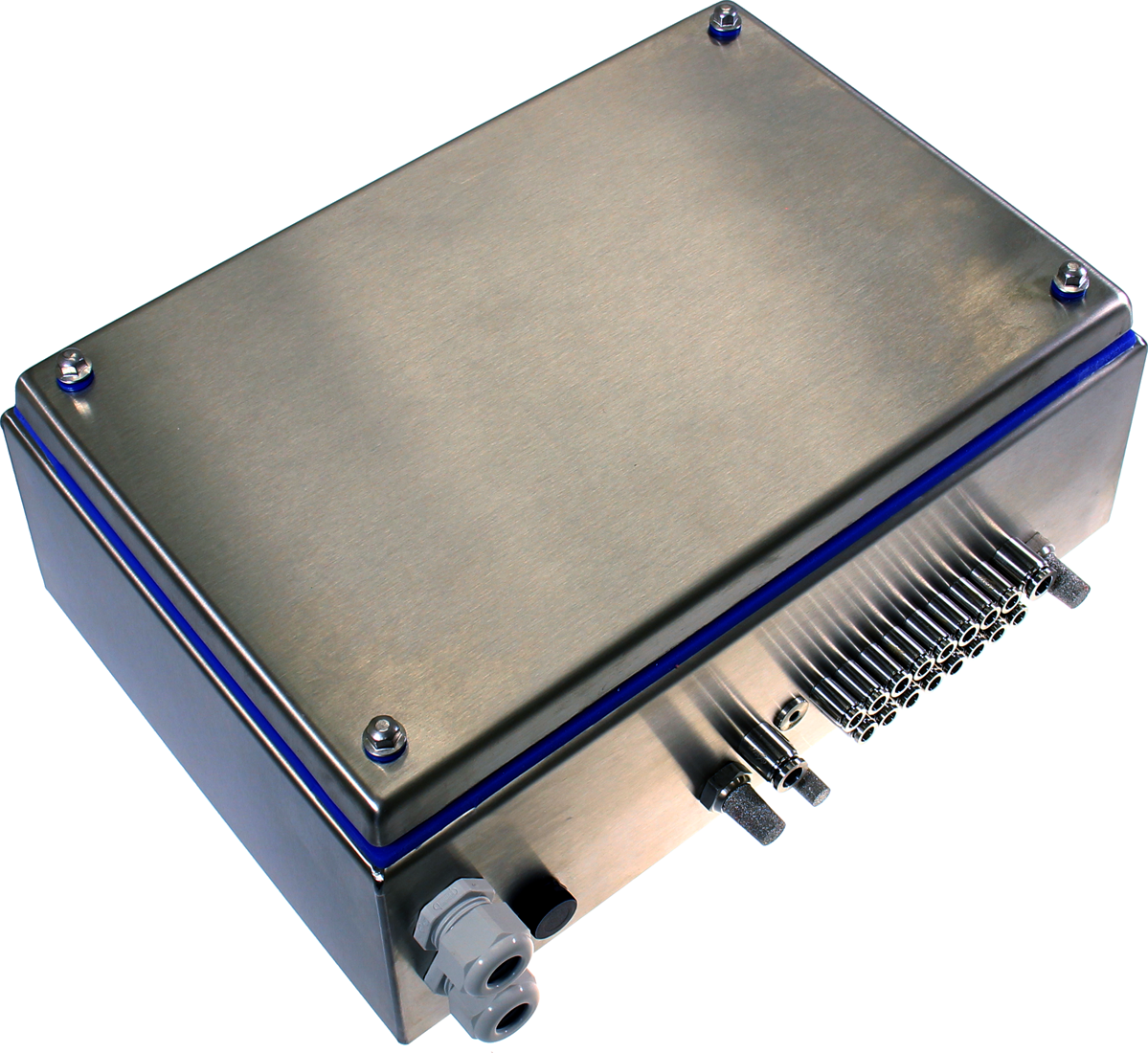

Pneumapole-K 8-fold MP, Pneumatic cabinet with 8 valve positions and Multipin connection

Pneumapole-K 8-fold MP, Pneumatic cabinet with 8 valve positions and Multipin connection
Rittal HD Design terminal box
Festo VTUG-10 valve terminal (standing)
Number of valve positions: 8
Electrical connection: Multipin with 10 m cable
Push-in fittings: Stainless steel316
Silencers: Stainless steel
Overpressure valve: Plastic (on request Stainless steel)
Cable glands: Plastic (on request Stainless steel)

You tell us which valves you want where and we strive to deliver the whole fully assembled and tested from stock.


Pneumapole-K with multipin connection

The Pneumapole-K with multipin and 10 meter cable will probably be used most in existing installations where the valves need to be renewed and are still conventionally wired. This solution is probably cheaper and faster than building valves in the existing cabinet again. A Pneumapole blind plate can be used to seal the holes in the existing cabinet

• You specify how many and which valves or blanking plates you need and we deliver the complete pneumatic cabinet assembled and tested.
• No engineering work or drawing work
• No lack of space in existing cabinet
• Electrical and Pneumatic separation (machinery directive)
• The (Hygienic) pneumatic cabinet from stock (aim!), virtually no delivery time.
