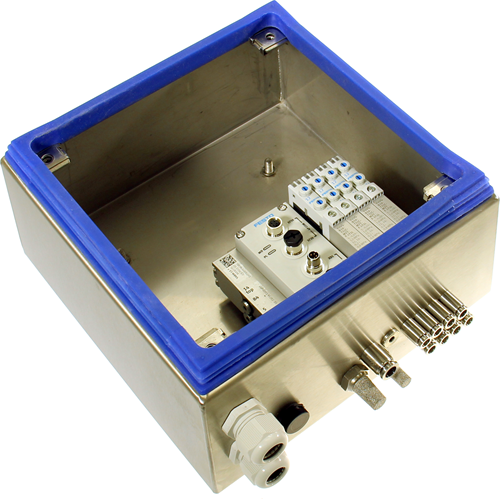

Pneumapole-K 4-fold AP, Pneumatic cabinet with 4 valve positions and Festo AP-I connection

Pneumapole-K 4-fold AP, Pneumatic cabinet with 4 valve positions and Festo AP-I connection
Rittal HD Design terminal box
Festo VTUG-10 valve terminal (standing)
Number of valve positions: 4
Electrical connection: Festo AP-I
Push-in fittings: Stainless steel316
Silencers: Stainless steel
Overpressure valve: Plastic (on request Stainless steel)
Cable glands: Plastic (on request Stainless steel)

You tell us which valves you want where and we strive to deliver the whole fully assembled and tested from stock.


Pneumapole-K with Festo AP-I connection

The Pneumapole-K with Festo AP-I connection also has the advantages of the IO-link, but can do just that little bit more. At Ebora we see this being applied in small to large installations/skids/machines and processes.

Festo AP-I has the option of expanding on 1 master to 79 modules, which can be spaced 50 meters apart each time. The communication is real-time. This also makes the installation very scalable.

An additional advantage is that if your customer wants a different fieldbus than the one the installation has been designed for, you only need to change the master module and the rest can remain the same.

The only drawback we can think of is that the AP connection is only available through Festo
is delivered.

• You specify how many and which valves or blanking plates you need and we deliver the complete pneumatic cabinet assembled and tested.
• No engineering work or drawing work
• No lack of space in existing cabinet
• Electrical and Pneumatic separation (machinery directive)
• The (Hygienic) pneumatic cabinet from stock (aim!), virtually no delivery time.
