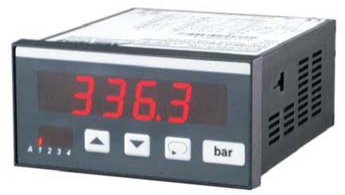

Digital display for signal-input DSA 9648 – for panel-installation
The digital display for signal-input DSA 9648 for panel installation is designed for standard signals 0/4…20 mA or 0…+10 V DC.
The device provides an integrated transmitter supply for the direct connection of 2- and 3-wire transmitters, for example, for pressure or temperature.
The connection of potentiometers is also possible.
The indicating range and decimal point are free programmable within the range of ± 99990 (with a fixed zero selected).
Features: For standard signals 0/4…20 mA or 0…10 V
Indicating range and decimal point free programmable
Optional with max. 4 outputs (SPDT relays or transistor)
LED display, 14.2 mm
Display range ± 9999(0) digits
