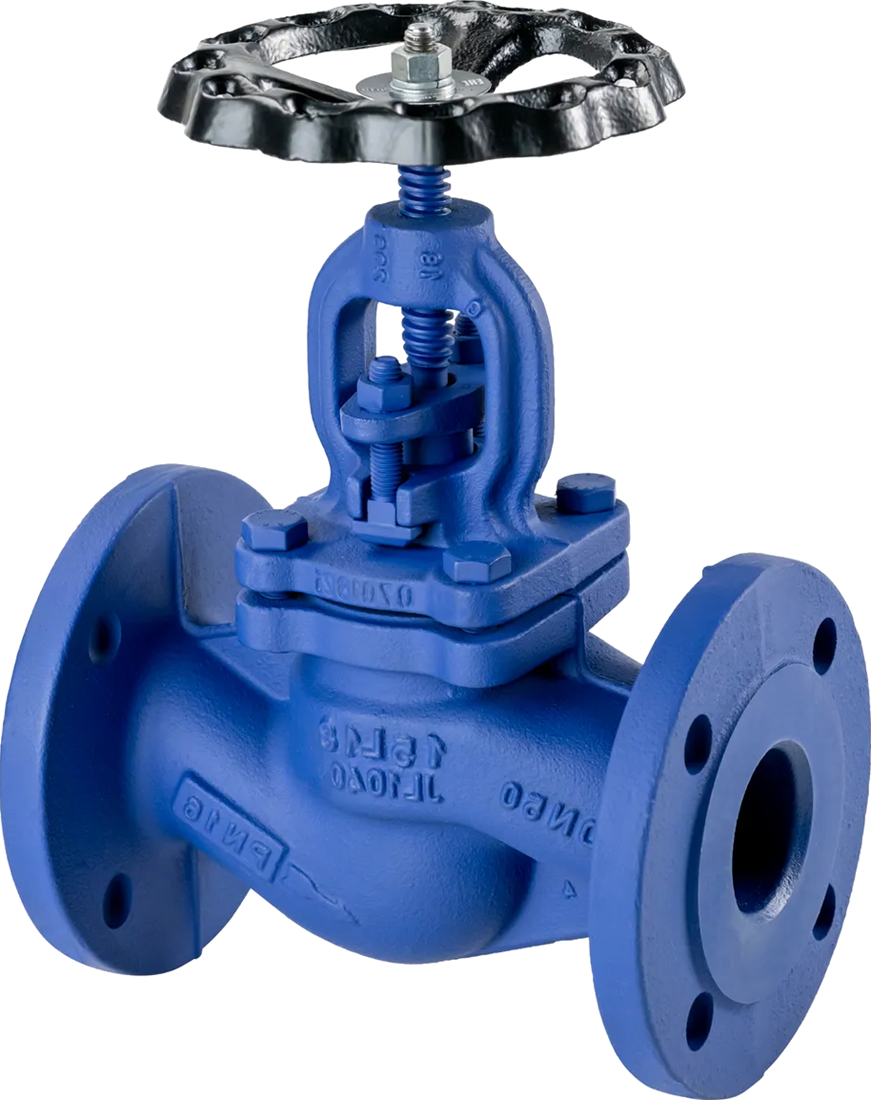

ARI-Armaturen flanged-stuffing box stop valve STOBU 12006, DN65, PN16, EN-JL1040, screw down non return plug with re-setting spring

ARI-Armaturen flanged-stuffing box stop valve STOBU 12006, DN65, PN16, EN-JL1040, screw down non return plug with re-setting spring
Metal-sealing shut-off valve
straight through with flanges,
length according to EN 558, FTF-1,
housing made of ductile cast iron EN-JS1049
with basic primer,
with gland packing seal
for applications in building technology
from -10 degrees C to +350 degrees C
cone, spindle, and seat ring made of
stainless steel material 1.4021+QT,
spindle with rolled thread,
shaft polished by embossing,
TA-Luft (DIN EN 15848), TRB 801 No.45,
TÜV test number TA 08 2016 C04,
CE certification according to
Pressure Equipment Directive.
Design: Flat cone
Nominal pressure: PN 16
Nominal size: DN65
Weight: 18.4 kg
