Product description

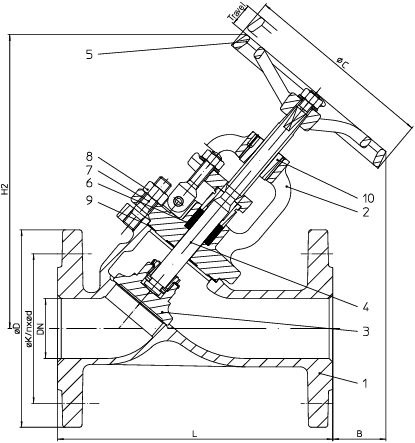

ARI-Armaturen Y-pattern-flanged-stuffing box stop valve STOBU, 52.009 DN150, PN16,1.4408, flat plugMetal-sealing shut-off valvestraight through with flanges, inclined seat design,length according to EN 558, FTF-1,housing made of stainless steel 1.4408with basic coating,with gland packing sealfor applications in building technologyfrom -10 degrees C to +400 degrees Ccone, spindle, and seat ring made ofstainless steel 1.4571spindle with rolled thread,shaft polished by embossing,TA-Luft (DIN EN 15848), TRB 801 No. 45,TÜV test number TA 08 2016 C04,CE certification according toPressure Equipment Directive.Design: Flat coneNominal pressure: PN 16Nominal size: DN150Weight: 72 kg
