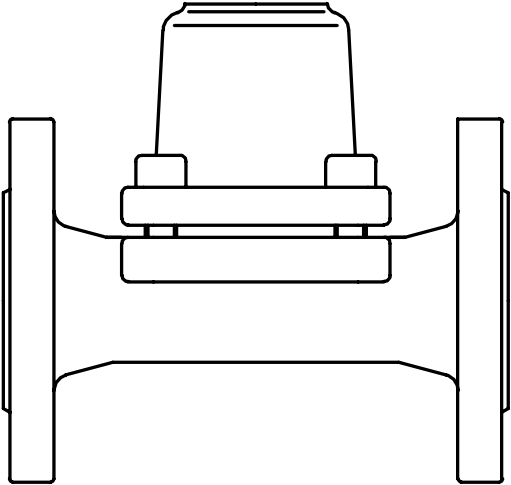

ARI-Armaturen bimetal steam trap CONA B, Fig. 12.600, DN 15, PN16, EN-JL1040

ARI-Armaturen bimetal steam trap CONA B, Fig. 12.600, DN 15, PN16, EN-JL1040
Thermal condensate drain for discharging
slightly to highly subcooled condensate
through a corrosion-resistant, water-
hammer-resistant bimetal regulator, continuous
adjustment of subcooling possible while
observing the operating instructions, suitable for horizontal and
vertical installation.
With integrated check valve and
internal dirt filter, automatic
venting, maintenance-friendly due to
replaceable bimetal regulator unit.
Connection: Welding union DN 15
Overall length: 190 mm
Housing material: EN-JL1040
Pressure rating: PN16
Regulator: R13
Differential pressure: max. 13 bar
Inlet temperature: max. 300°C @ 9.6 bar
max. 200°C @ 12.8 bar
Flow rate: max. 1200 kg/h
Manufacturer: ARI-Armaturen
Figure: 12,600
Article number: 12600001551061
