Product description

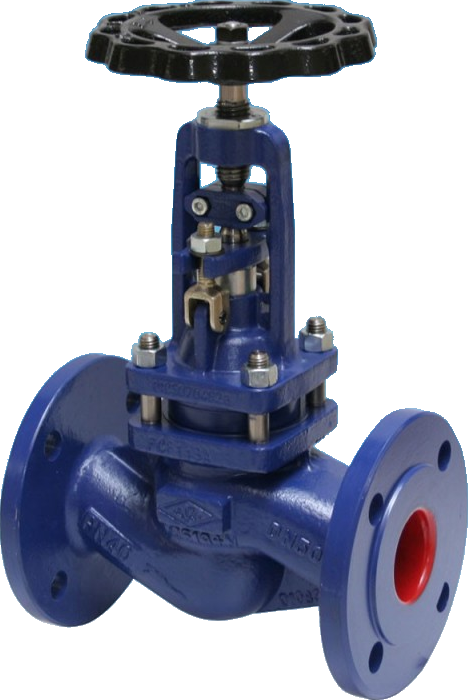

ARI-Armaturen Bellows shut-off valve FABA-Supra I DN32 1.4408, PN40,1-psc spindle, plug with marginal seatMaintenance-free metallic sealing shut-off valve with bellows straight through with flanges according to EN 558, FTF-1, industrial design, housing made of stainless steel 1.4408. Double-walled stainless steel bellows made of 1.4571, welded to the upper part (shielded), one-piece fine thread spindle with external and rolled thread, flat funnel lubrication nipple, recessed locking device, stroke limitation, welded seat, safety gland with gland follower, detachable anti-rotation device with indicator, spindle back sealing, double-chambered cover seal, metallic handwheel with cataphoretic coating, TA-Luft TÜV test number TA 07 2016 C04, nominal pressure: PN 40, nominal size: DN32, cone design: edge seat (throttling function), maximum temperature: -10 to +450 degrees C, weight: 8.1 kg.
