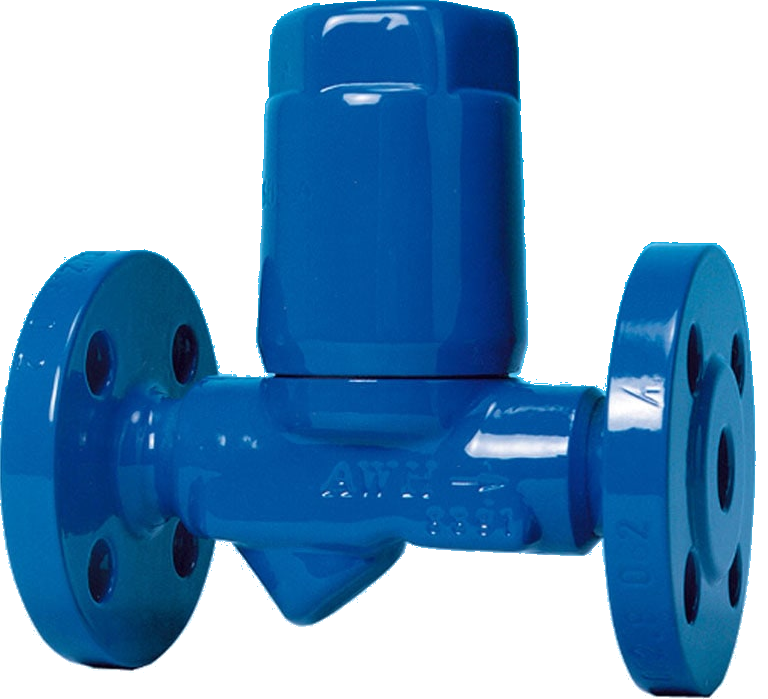

ARI-Armaturen bimetal steam trap CONA B, Fig. 45.600, DN 20, PN40, 1.0460

ARI-Armaturen bimetal steam trap CONA B, Fig. 45.600, DN 20, PN40, 1.0460
Thermal condensate drain for discharging
slightly to heavily subcooled condensate
through a corrosion-resistant, water-
hammer-resistant bimetal regulator, continuous
adjustment of subcooling possible while
observing the operating instructions, suitable for
horizontal and vertical installation.
With integrated check valve and
internal dirt filter, automatic
venting, maintenance-friendly due to
replaceable bimetal regulator unit,
seal-less construction with metallic
sealing contours, optimized valve design
for quick installation.
Connection: Welding socket DN 20
Overall length: 95 mm
Housing material: 1.0460
Pressure rating: PN40
Regulator: R13 / R22 / R32
Differential pressure: max. 13 bar (R13)
max. 22 bar (R22)
max. 32 bar (R32)
Inlet temperature: max. 450°C @ 14.5 bar
max. 385°C @ 22 bar
max. 250°C @ 32 bar
Flow rate: max. 1200 kg/h
Manufacturer: ARI-Armaturen
Figure: 45,600
Article number: 456000020340
