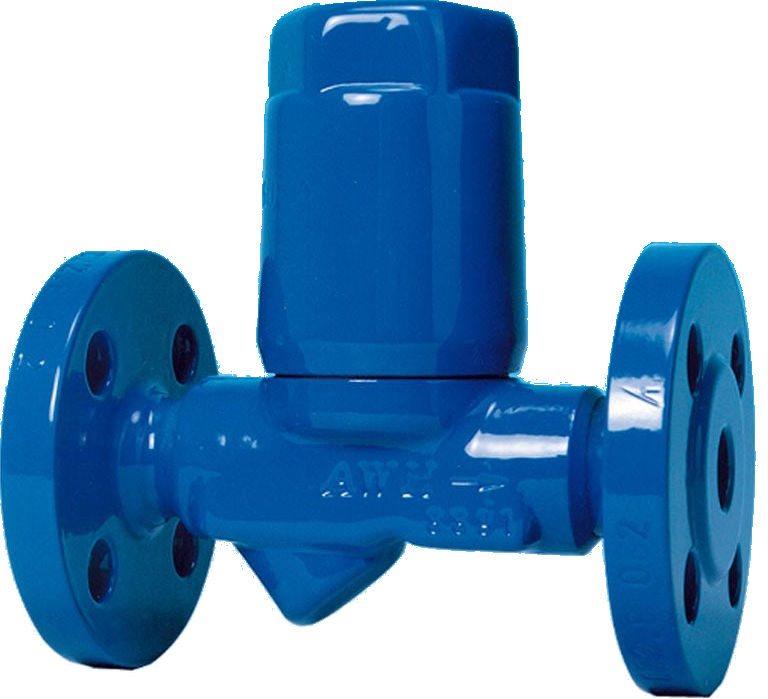

ARI-Armaturen bimetal steam trap CONA B, Fig. 45.600, DN 50, PN40, 1.0460

ARI-Armaturen bimetal steam trap CONA B, Fig. 45.600, DN 50, PN40, 1.0460
Thermal condensate drain for discharging
slightly to highly subcooled condensate
through a corrosion-resistant, water-
hammer-resistant bimetal regulator, continuous
adjustment of subcooling possible while
observing the operating instructions, suitable for horizontal and
vertical installation.
With integrated check valve and
internal dirt filter, automatic
venting, easy maintenance due to
replaceable bimetal regulator unit.
Connection: Flange DN 50
Overall length: 230 mm
Housing material: 1.0460
Pressure rating: PN40
Regulator: R13 / R22 / R32
Differential pressure: max. 13 bar (R13)
max. 22 bar (R22)
max. 32 bar (R32)
Inlet temperature: max. 450°C @ 14.5 bar
max. 385°C @ 22 bar
max. 250°C @ 32 bar
Flow rate: max. 1800 kg/h
Manufacturer: ARI-Armaturen
Figure: 45,600
Article number: 456000050140
