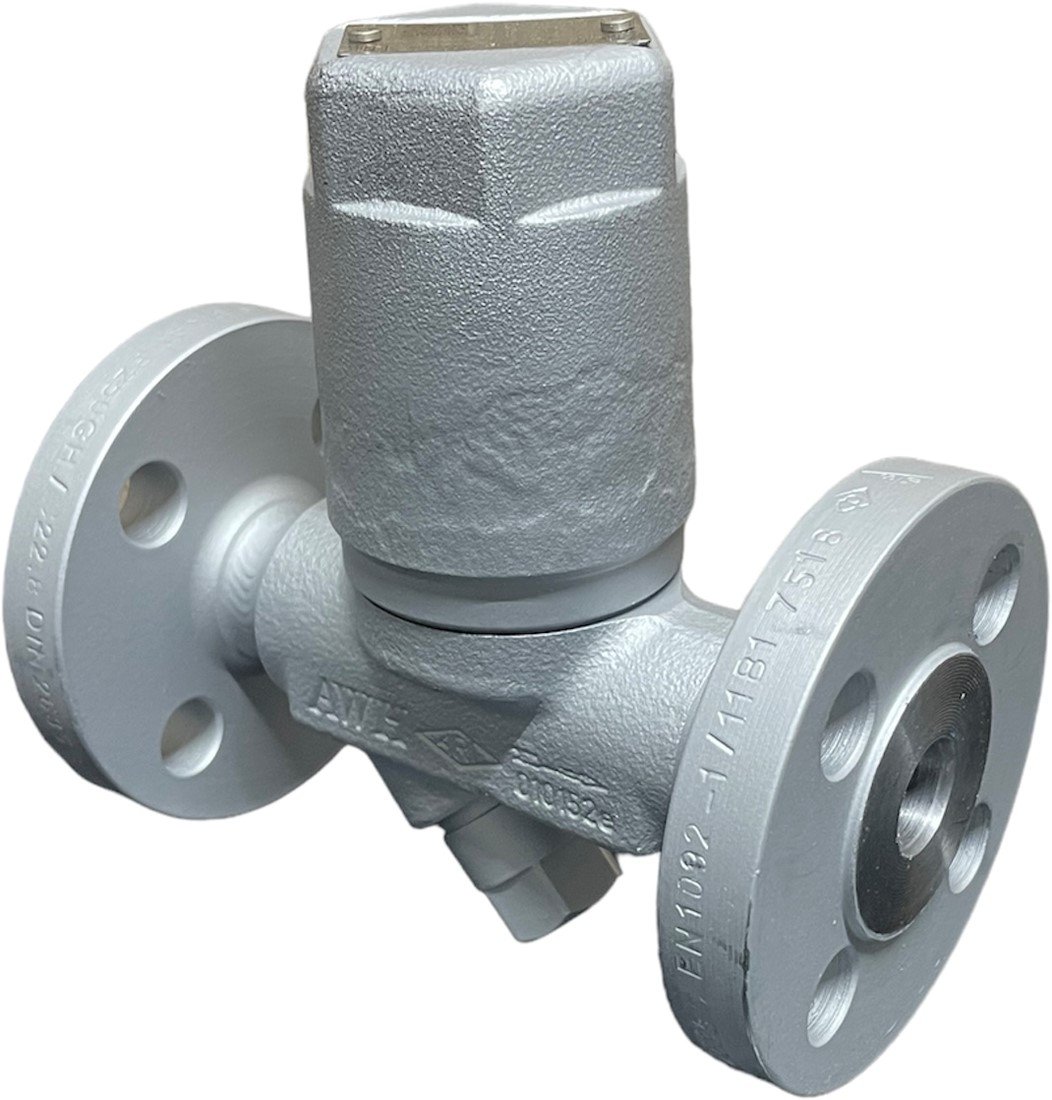

ARI-Armaturen bimetal steam trap CONA B, Fig. 45.601, DN 40, PN40, 1.0460

ARI-Armaturen bimetal steam trap CONA B, Fig. 45.601, DN 40, PN40, 1.0460
Thermal condensate drain for discharging
slightly to highly subcooled condensate
through a corrosion-resistant, water-
hammer-resistant bimetal regulator, continuous
adjustment of subcooling possible while
observing the operating instructions, suitable for horizontal and
vertical installation.
With integrated check valve and
external dirt filter (Y-strainer),
automatic air venting, easy maintenance
due to interchangeable bimetal regulator unit.
Connection: Butt welding DN 40
Overall length: 250 mm
Housing material: 1.0460
Pressure rating: PN40
Regulator: R13 / R22 / R32
Differential pressure: max. 13 bar (R13)
max. 22 bar (R22)
max. 32 bar (R32)
Inlet temperature: max. 450°C @ 14.5 bar
max. 385°C @ 22 bar
max. 250°C @ 32 bar
Flow rate: max. 1800 kg/h
Manufacturer: ARI-Armaturen
Figure: 45.601
Article number: 456010040440
