Product description

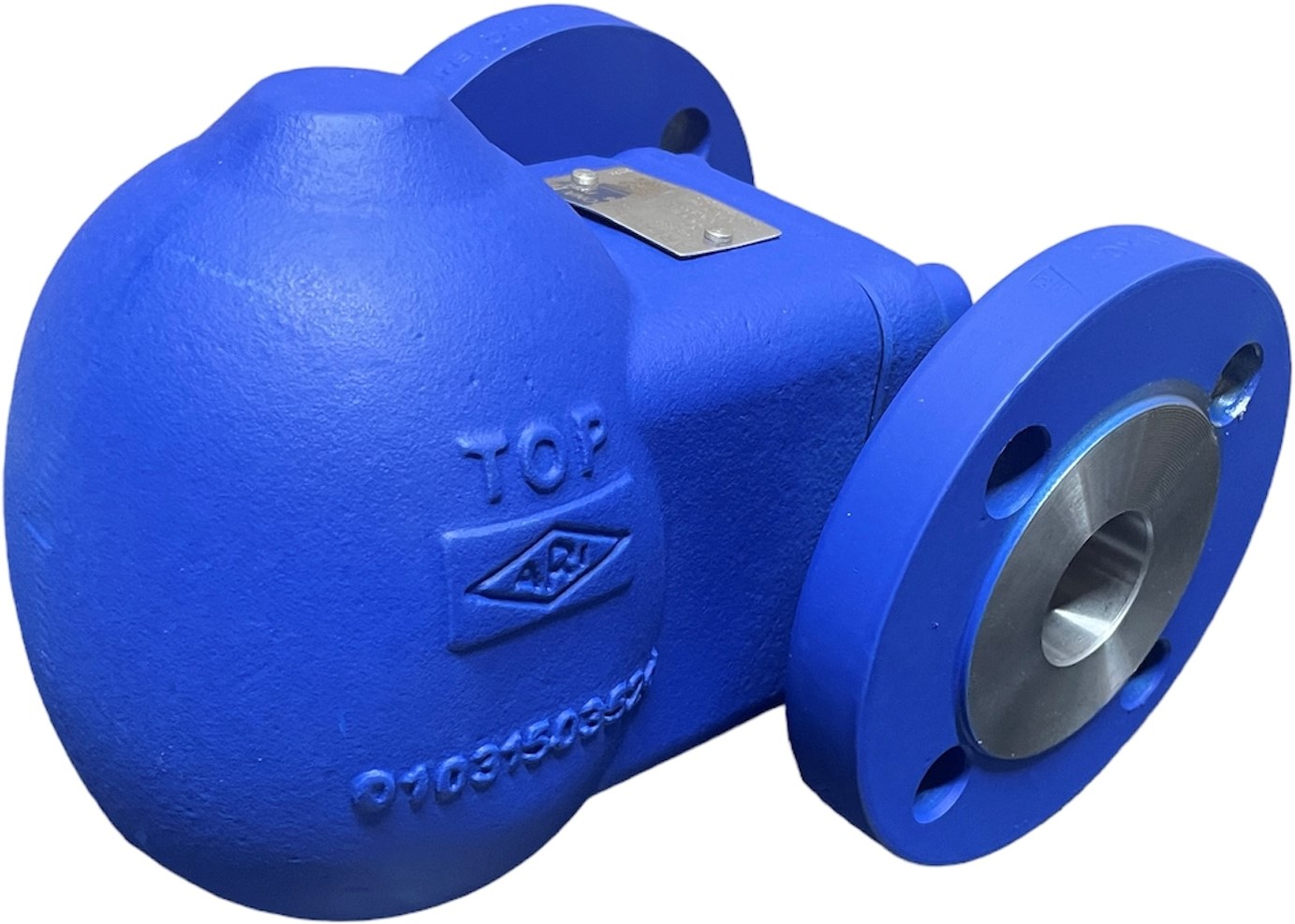

ARI-Armaturen float-steam trap CONA SC, Fig. 42.634, DN 15-25, PN16, 1.0460Compact float steam trap with level control for draining steam systems of any kind, for the unobstructed discharge of boiling hot condensate even under extreme pressure and flow fluctuations, capable of handling large condensate quantities even at low differential pressures, robust and water-hammer resistant construction, standard vertical and optional horizontal installation position, possible on-site modification according to conversion instructions. With integrated backflow prevention and internal dirt filter, integrated membrane capsule for automatic air venting, housing with flanged cover, regulator can be replaced without dismantling the housing from the pipeline. Connection: Welding socket DN 15 / 20 / 25. Overall length: 95 mm. Housing material: 1.0460. Cover material: EN-JS1049. Pressure rating: PN16. Regulator: R4 / R14. Differential pressure: max. 4 bar (R4), max. 14 bar (R14). Inlet temperature: max. 300°C. Flow rate: max. 600 kg/h. Manufacturer: ARI-Armaturen. Figure: 42.634. Article number: 426340015340.. / 426340020340.. / 426340025340..
