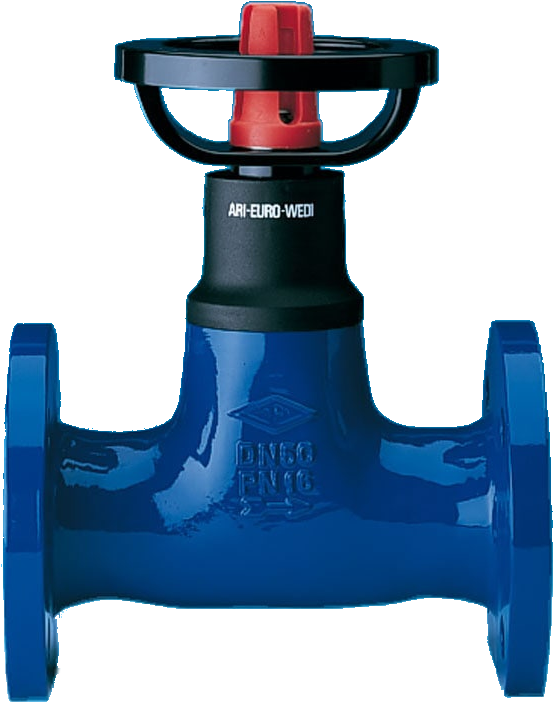

ARI-Armaturen flanged-Stop valve EURO-WEDI 12.071 DN80,PN16,EN-JL1040,EPDM-plug

ARI-Armaturen flanged-Stop valve EURO-WEDI 12.071 DN80,PN16,EN-JL1040,EPDM-plug
Maintenance-free soft-sealing shut-off valve straight through with flanges, housing made of cast iron EN-JL1040 with basic primer, through form in inclined seat design and straight upper part, non-rising handwheel, embossed polished spindle made of 1.4021+QT, externally threaded spindle, fully isolatable according to the Building Energy Act - GEG, PCB-free, display device, anti-rotation device, insulating cap with dew point barrier, tight-closing, leakage rate A according to EN12266, self-centering EPDM-coated cone with throttling function and back sealing, spindle sealing by EPDM sealing ring with scraper, internal stroke limitation and locking device, overall length: according to EN558/1, medium temperature: -10 - +120°C, nominal pressure: PN 16, nominal size: DN80, weight: 18.3 kg, article code: 120710080-10.
