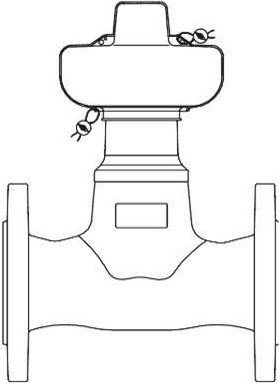

ARI-Armaturen flanged-Cap valve EURO-WEDI 12.073 DN200,PN16,EN-JL1040,EPDM-plug

ARI-Armaturen flanged-Cap valve EURO-WEDI 12.073 DN200,PN16,EN-JL1040,EPDM-plug
Maintenance-free soft-sealing cap valve straight through with flanges, housing made of cast iron EN-JL1040 with basic primer, through form in inclined seat design and straight top, non-rising handwheel, embossed polished spindle made of 1.4021+QT, externally threaded spindle, fully isolatable according to the Building Energy Act - GEG, PCB-free, display device, anti-rotation device, insulating cap with dew point barrier, tight-closing, leakage rate A according to EN12266, self-centering EPDM-coated cone with throttling function and back sealing, tilting spindle guide, EDD- Elastic Double Sealing System, overall length: according to EN558/1, medium temperature: -10 - +120°C, nominal pressure: PN 16, nominal size: DN200, weight: 105 kg, article code: 1207302001.
