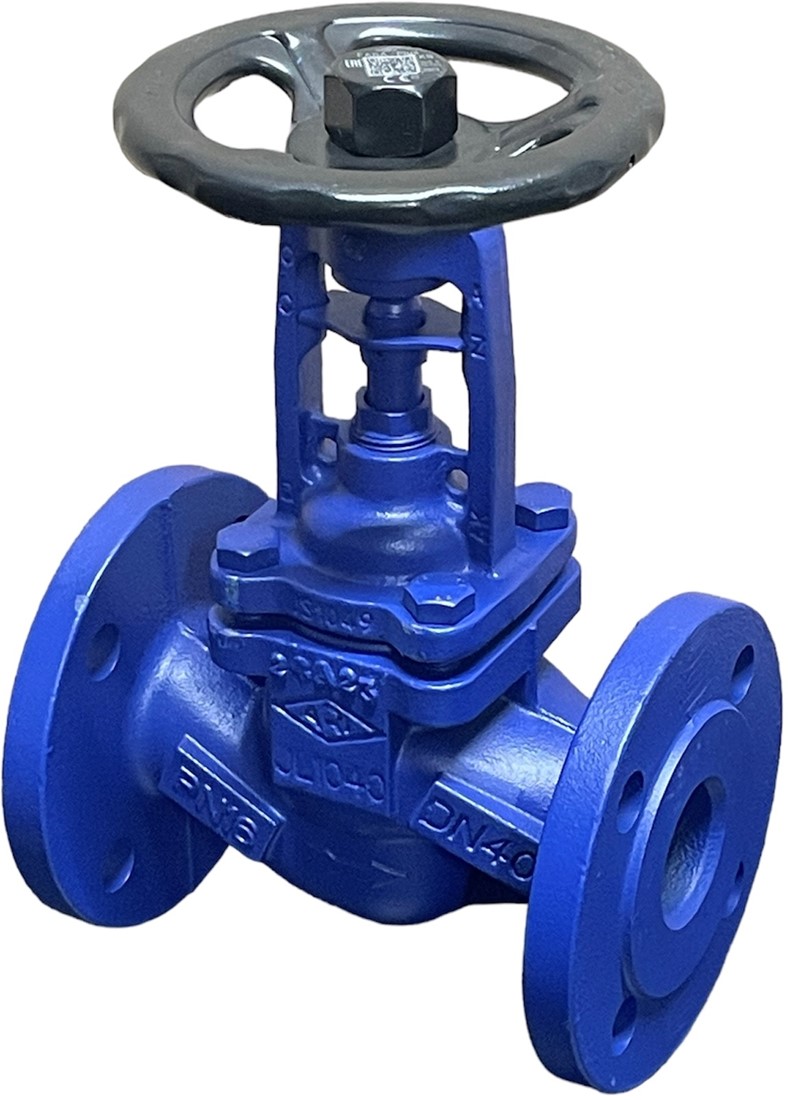

ARI-Armaturen flanged-Bellows shut-off valve FABA-Plus 12.046 DN50,PN16,EN-JL1040,PTFE-soft seal plug

ARI-Armaturen flanged-Bellows shut-off valve FABA-Plus 12.046 DN50,PN16,EN-JL1040,PTFE-soft seal plug
Maintenance-free soft-sealing shut-off valve in straight-through design with flanges. Housing made of cast iron EN-JL1040 with primer. Spindle sealing by double-walled stainless steel bellows made of 1.4571. Internal parts made of 1.4021+QT, fine-threaded spindle with externally mounted and rolled thread, flat funnel lubrication nipple, recessed locking device, heat-dissipating bracket cover optimized for attachments made of EN-JS 1049, safety gland, detachable anti-rotation device with indicator, tight-closing, leakage rate A according to EN12266, non-rising metallic handwheel with cathaphoretic coating, retrofitting possible with limit switch in operation, fully insulatable according to the Building Energy Act - GEG, TA-Luft and EN ISO 15848-1 on request. Overall length according to EN558/1. Medium temperature: -10 - +200°C. Nominal pressure: PN 16. Nominal size: DN50. Cone design: PTFE soft-sealing cone. Weight: 11 kg. Article code: 12046005008.
