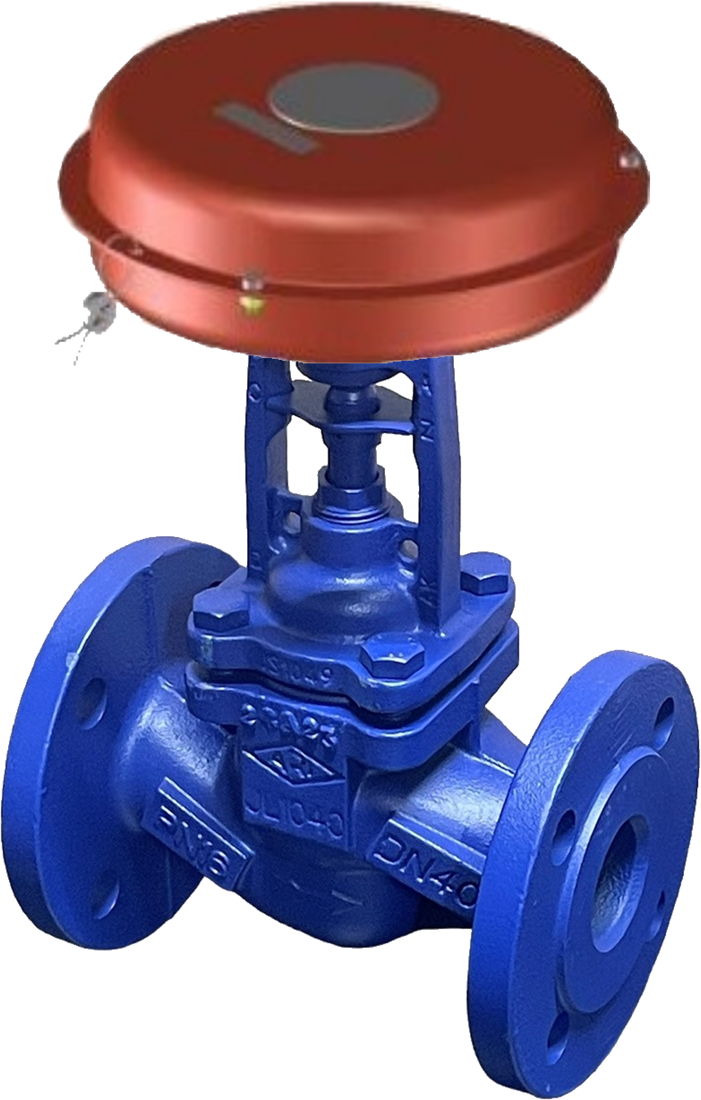

ARI-Armaturen flanged-Cap valve FABA-Plus 23.046 DN40,PN25,EN-JS1049, plug with marginal seat

ARI-Armaturen flanged-Cap valve FABA-Plus 23.046 DN40,PN25,EN-JS1049, plug with marginal seat
Maintenance-free metallic sealing cap valve straight through with flanges, housing made of ductile cast iron EN-JS1049 with basic primer, spindle sealing by double-walled stainless steel bellows made of 1.4571, internal parts 1.4021+QT, fine-threaded spindle with externally located and rolled thread, flat funnel lubrication nipple, recessed locking device, heat-dissipating bracket cover optimized for attachments made of EN-JS 1049, safety gland, detachable anti-rotation device with indicator, tight-closing, leakage rate A according to EN12266, non-rising metallic handwheel with cathaphoretic coating, fully insulatable according to Building Energy Act - GEG, TRB 801 No.45, TA-Luft and EN ISO 15848-1 on request, equipped with cap unit. Overall length: according to EN558/1, medium temperature: -10 - +300°C, nominal pressure: PN 25, nominal size: DN40, cone design: sharp-edged seat (throttling function), weight: 8.9 kg, article code: 230460040.
