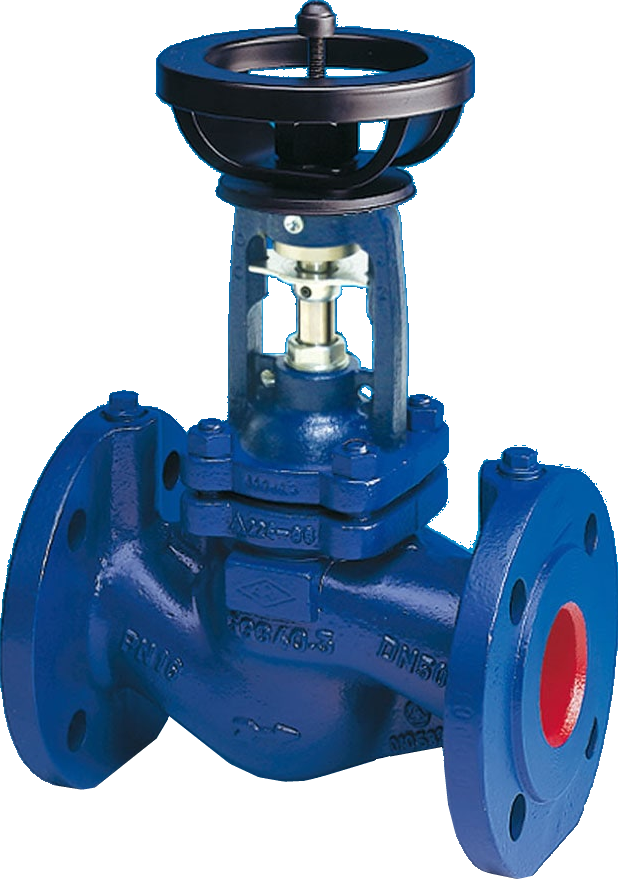

ARI-Armaturen flow regulating valve ASTRA Plus 22.042 DN150, PN16, EN-JS1049

ARI-Armaturen flow regulating valve ASTRA Plus 22.042 DN150, PN16, EN-JS1049
Maintenance-free metallic sealing control valve with shut-off function straight through with flanges, housing made of ductile cast iron EN-JS 1049 DN15-200: Spindle sealing by stainless steel bellows made of 1.4571, and safety gland, Integrated pressure tapping points (DN15-150) Regulation with defined characteristic curve over the entire stroke range, non-rising handwheel with opening indicator and integrated stroke limitation, Locking device, burnished spindle made of 1.4021+QT, external spindle thread, Anti-rotation device, digital display (DN15-150), tight-closing, leakage rate A according to EN12266, fully insulatable according to Building Energy Act - GEG, PCB-free Length: according to EN558/1 Medium temperature: -10 - +175°C Nominal pressure: PN 16 Nominal size: DN150 Weight: 74 kg Article code: 2204201501
