Product description

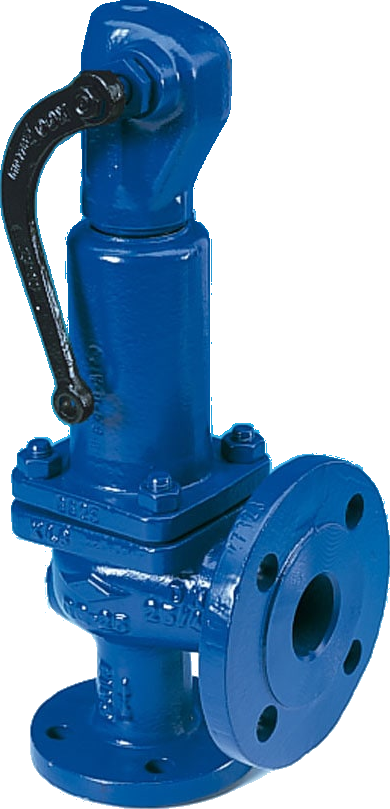

ARI-Armaturen safety valve SAFE 12.901 DN32/50,PN16,EN-JL1040,spring loaded D/G/FNormal safety valve with flanges,Housing made of cast iron EN-JL1040,with basic primer,Closed spring bonnet,Closed venting,Spring-loaded, high wear resistance,Seat and spindle made of 1.4021+QT,Direct-acting,Optional EPDM soft sealing cone,Optional EPDM bellows or stainless steel bellows,Precise centering and guiding of the cone,Component tested according to EN ISO 4126-1,TRD 421 and AD2000-A2,TA-Luft on request,Component identification:Normal valve TÜV-SV-..-663-D/G/FMedium temperature: -10 - +300°CNominal pressure: PN 16Nominal size: DN32/50Set pressure bar(g): 0.2-16 barWeight: 14 kgArticle code:
