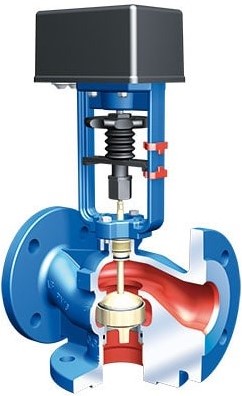

ARI-Armaturen control valve 3-way, STEVI®H 12.485 PN16, DN65, Kvs 40, PACO-D 230V, 1,6kN

ARI-Armaturen control valve 3-way, STEVI®H 12.485 PN16, DN65, Kvs 40, PACO-D 230V, 1,6kN
Maintenance-free soft-sealing heating control valve,
Housing made of EN-JL1040, 3-way design, flanges,
Spindle sealing O-ring, spindle made of 1.4571, tight-closing, DIN EN 12266-1 leakage rate A,
Characteristic: Path A equal percentage, Path B linear,
Actuation ratio 30:1,
With electric HVAC actuator, 1.6 kN,
Operating mode S3 80% ED / max. 1200 cycles/h (at 70°C),
Permissible ambient temperature 0°C to +70°C,
Protection class IP 65, mechanical stroke indicator,
Mechanical force shutdown in both end positions,
Manual emergency adjustment, 3-point control,
Make and model: ARI PACO 1.6 D,
Motor voltage: 230 V 50/60 Hz,
Actuation speed (mm/sec.): 0.25/0.30,
Overall length: according to EN558/1,
Medium temperature: -10 - +130°C,
Nominal pressure: PN 16,
Nominal size: DN65,
Weight: 18.0 kg,
Kvs: 40 m³/h.
