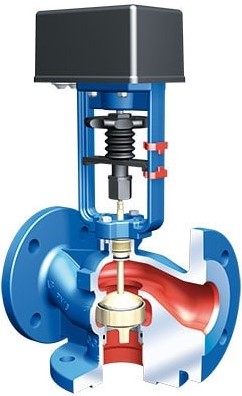

ARI-Armaturen control valve 3-way, STEVI®H 10.485 PN6, DN100, Kvs 160, PACO-Y 24V, 1,6kN

ARI-Armaturen control valve 3-way, STEVI®H 10.485 PN6, DN100, Kvs 160, PACO-Y 24V, 1,6kN
Maintenance-free soft-sealing heating control valve,
Housing made of EN-JL1040, 3-way design, flanges,
Spindle sealing O-ring, spindle made of 1.4571, tight-closing, DIN EN 12266-1 leakage rate A,
Characteristic: Path A equal percentage, path B linear,
Actuation ratio 30:1,
With electric HVAC actuator, 1.6 kN,
Operating mode S3 80% ED / max. 1200 cycles/h (at 70°C),
Permissible ambient temperature 0°C to +70°C,
Protection class IP 65,
Mechanical stroke indicator, mechanical force shutdown in both end positions, manual emergency adjustment,
With positioner, microprocessor version with control signal input 0(2)-10V and position feedback 0(2)-10V,
Automatic self-adaptation to valve stroke, tight-closing function,
Economical 3-wire connection or 4-wire connection possible, Economy function,
4 selectable actuation speeds,
Make and type: ARI PACO2G 1.6 Y,
Motor voltage: 24V AC/DC,
Actuation speed (mm/sec.): 0.25/0.38/0.47/1.00,
Overall length: according to EN558/1,
Medium temperature: -10 - +130°C,
Nominal pressure: PN 6,
Nominal size: DN100,
Weight: 35.0 kg,
Kvs: 160 m³/h.
