Product description

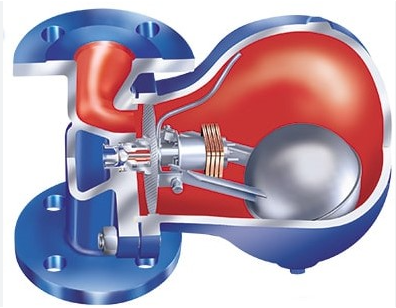

ARI-Armaturen float-steam trap CONA S, Fig. 55.631, DN 15-50, PN40, 1.4541Swimmer condensate drain with level control, for trouble-free discharge of boiling hot condensate even under extreme pressure and flow fluctuations, robust and water hammer-proof construction, suitable for horizontal and vertical installation. With integrated backflow prevention and internal dirt filter, additional thermal control element for automatic start-up venting, housing with flanged cover, regulator can be replaced without dismantling the housing from the pipeline, subsequent change of installation position possible according to conversion instructions. Connection: Butt-weld end DN 15 / 20 / 25 / 40 / 50. Overall length: 160 mm / 250 mm (DN 40-50). Housing material: 1.4541. Cover material: 1.4308. Pressure rating: PN40. Regulator: R2 / R4 / R8 / R13 / R22 / R32. Regulator (= DN40): R2-S / R4-S / R8-S / R13-S. Differential pressure: max. 2 bar (R2 / R2-S), max. 4 bar (R4 / R4-S), max. 8 bar (R8 / R8-S), max. 13 bar (R13 / R13-S), max. 22 bar (R22), max. 32 bar (R32). Inlet temperature: max. 300°C @ 28 bar, max. 250°C @ 32 bar. Flow rate: dependent on nominal size, differential pressure, and regulator. Manufacturer: ARI-Armaturen. Figure: 55.631. Article number: 556310015456.. / 556310020456.. / 556310025456.. / 556310040456.. / 556310050456..
