Product description

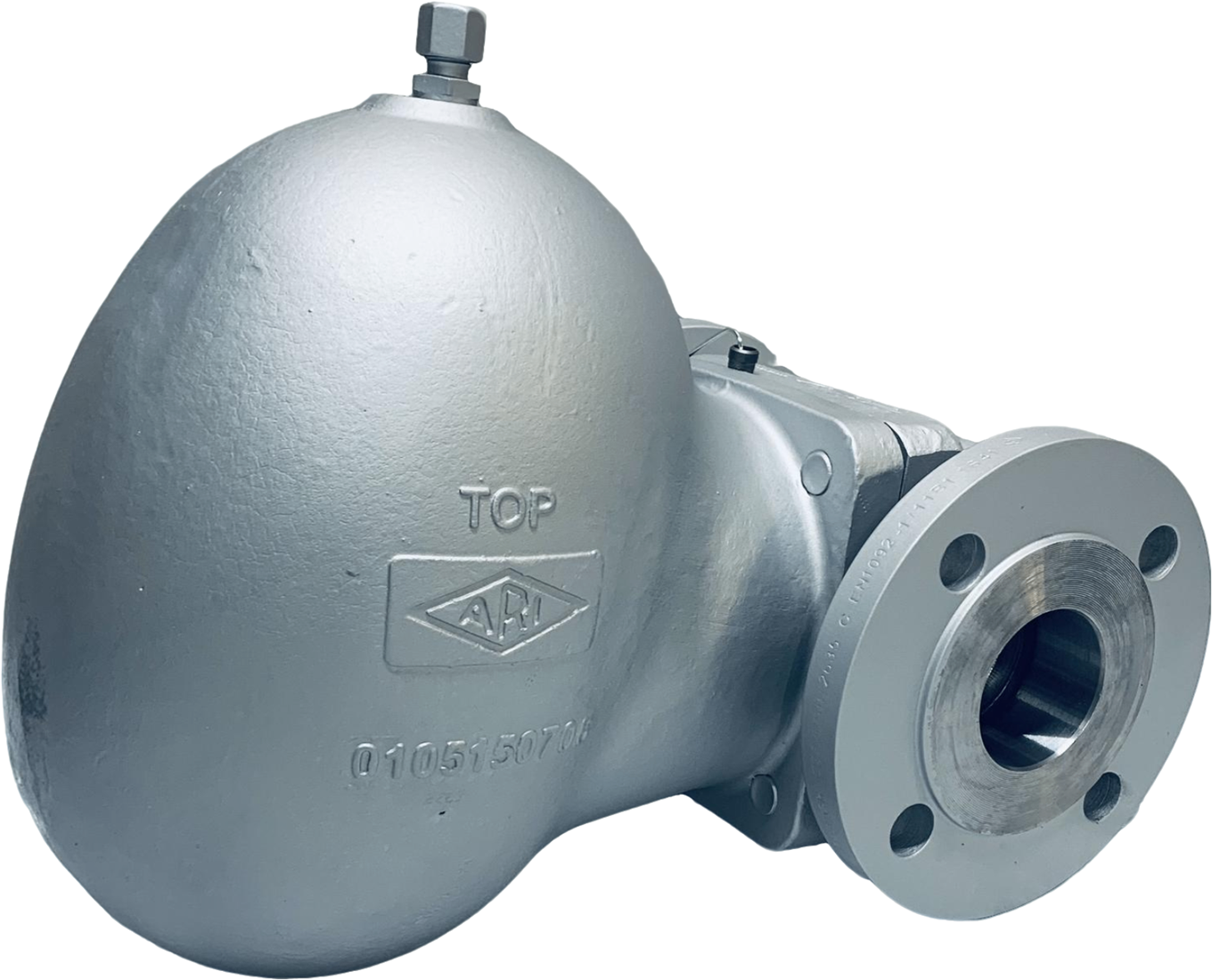

ARI-Armaturen float-steam trap CONA S, Fig. 45.630, DN 15-50, PN40, 1.0460Swimmer condensate drain with level control for draining systems with compressed air or water-containing gases as the medium, robust and water hammer-proof construction, suitable for horizontal or vertical installation. With integrated backflow prevention and internal dirt filter, connection for pendulum line, regulator can be replaced without dismantling the housing from the pipeline, subsequent change of installation position possible according to conversion instructions. Connection: Flange DN 15 / 20 / 25 / 40 / 50. Overall length: 150 mm / 160 mm (DN 25) / 230 mm (DN 40-50). Housing material: 1.0460. Cover material: 1.0619+N. Pressure rating: PN40. Regulator: R2 / R4 / R8 / R13 / R22 / R32. Differential pressure: max. 2 bar (R2), max. 4 bar (R4), max. 8 bar (R8), max. 13 bar (R13), max. 22 bar (R22), max. 32 bar (R32). Inlet temperature: max. 400°C @ 21 bar, max. 250°C @ 32 bar. Flow rate: dependent on nominal size, differential pressure, and regulator. Manufacturer: ARI-Armaturen. Figure: 45.630. Article number: 456300015140.. / 456300020140.. / 456300025140.. / 456300040140.. / 456300050140..
