ARI-Armaturen float-steam trap CONA S, Fig. 12.631, DN 15-50, PN16, EN-JL1040

ARI-Armaturen float-steam trap CONA S, Fig. 12.631, DN 15-50, PN16, EN-JL1040

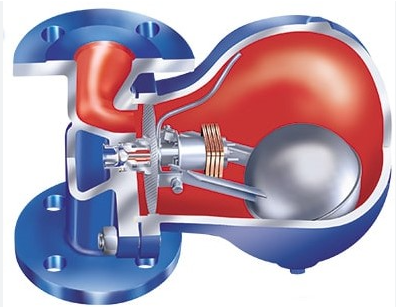

Swimmer condensate drain with level control, for trouble-free discharge of boiling hot condensate even under extreme pressure and flow fluctuations, robust and water hammer-proof construction, suitable for horizontal and vertical installation. With integrated backflow prevention and internal dirt filter, additional thermal control element for automatic start-up venting, housing with flanged cover, regulator can be replaced without dismantling the housing from the pipeline, subsequent change of installation position possible according to conversion instructions. Connection: Flange DN 15 / 20 / 25 / 40 / 50. Overall length: 150 mm / 160 mm (DN 25) / 230 mm (DN 40-50). Housing material: EN-JL1040. Cover material: EN-JL1040. Pressure rating: PN16. Regulator: R2 / R4 / R8 / R13. Regulator (= DN40): R2-S / R4-S / R8-S / R13-S. Differential pressure: max. 2 bar (R2 / R2-S), max. 4 bar (R4 / R4-S), max. 8 bar (R8 / R8-S), max. 13 bar (R13 / R13-S). Inlet temperature: max. 300°C @ 9.6 bar, max. 200°C @ 12.8 bar. Flow rate: dependent on nominal size, differential pressure, and regulator. Manufacturer: ARI-Armaturen. Figure: 12.631. Article number: 126310015110.. / 126310020110.. / 126310025110.. / 126310040110.. / 126310050110..
