Product description

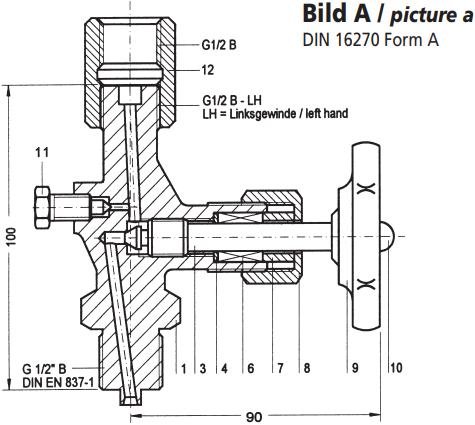

EB298106 gauge valve DIN 16270 form A
Material: 1.4571 / 316Ti
valve number acc. to DIN DIN16270-A-20St
Gauge valves are shut-off valves for a special use. The direct shut-off of pressure
gauges. In most cases there is a vent screw on the outlet side for expansion to the
pressure gauge. The connection to the instrument is an adjusting nut or a union
nut. For mounting use seals according to EN837-1 (DIN 16258). (see page Z5)
Please draw your attention to the chapter on Shut-off valves. There you will find
further connection possibilities and elements, which you can of course, by means
of a vent-screw or an adjusting nut serve as a pressure-gauge valve.
