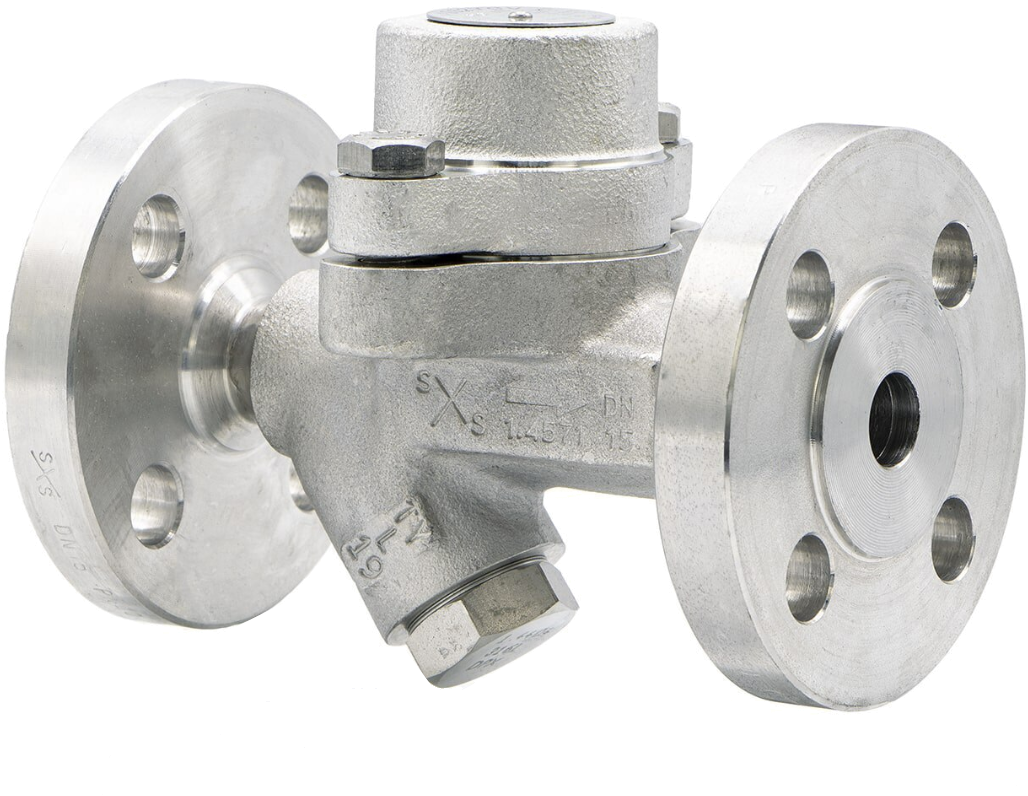

    Spirax Sarco DN20 BPS32YCV Steam Trap PN40 Std c/w Check Valve

    View everything from the category Steam trap
    Ask for quotationAdd to wish list
    Festo Delivery Time

    The stated delivery times are the working days or weeks indicated by the manufacturer.

    If the delivery time is critical for you, please contact us so we can verify it for you.

    Price and delivery time on request
    Add to favorites

    Why Ebora :

    • We think with you
    • Clear offers
    • Flexible and proactive
    • knowledgeable
    • Product description and specifications
    • Documents
    • Ask a Question

    Product description

    Thermal capsule-
    condensate separator with constant under-
    cooling and automatic
    steam venting over the entire
    operating range, condensate amounts up to
    1800 kg/h and operation under varying
    operating conditions, for installation in
    horizontal and vertical pipelines.
    Tight steam seal through self-centering-
    ball valve, with integrated
    check valve and full-fledged Y-
    strainer, maintenance-friendly through
    replaceable capsule element set,
    standard undercooling STD 12K.
    Connection: Flange DN20
    Pressure level: PN40
    Material housing: Stainless steel 1.4571
    Internal parts: Stainless steel
    Differential pressure: max. 32 bar
    Flow rate: max. 1500 kg/h
    Manufacturer: Spirax Sarco
    Type: BPS32YCV
    Order number: 1340.020.000

    Specifications

    ModelBPS32
    Material Stainless Steel
    Size connection DN020
    Process connection Flanges DIN
    Pressure rating 40 PN
    PrincipleThermostatische condenspot drukevenwicht
    PMA

    Maximal zulässiger Druck

    		PMA50 bar g @ 50 °C
    PMO

    Maximum working pressure

    		PMO32 Bar g
    TMA

    Maximum allowable temperature

    		TMA400 °C @ 35 bar g
    TMO

    Maximum Working Temperature

    		TMO281 °C @ 32 bar g
    Type of articleSteam traps
    Weight3500 gram
    BrandSpirax Sarco
    CategorySteam trap
    Product code10270750
    UnitPiece (s)
