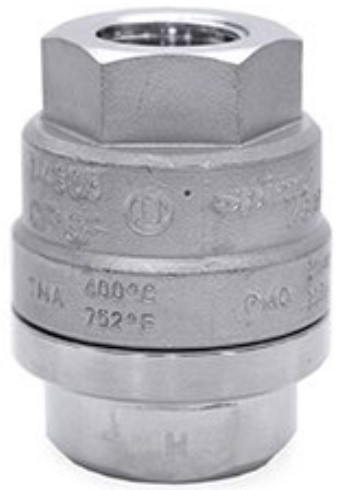

Spirax Sarco 3/4 MST21H Steam Trap BSP 'E' Fill Std

thermal capsule-
condensate separator for pure steam systems,
media-contacted parts in stainless steel,
with constant subcooling and
automatic steam venting over the
entire operating range, condensate amounts
up to 800 kg/h and operation under
changing operating conditions, for
installation in vertical piping for
self-draining.
Tight steam seal through self-centering
ball valve, with protective screen,
maintenance-friendly due to replaceable
capsule element set, high performance.
Standard subcooling STD 10K.
Connection: Internal thread Rp 3/4
: EN 10226-1
Pressure level: PN25
Material housing: Stainless steel 1.4305
Internal parts: Stainless steel
Differential pressure: max. 21 bar
Flow rate: max. 800 kg/h
Manufacturer: Spirax Sarco
Type: MST21H
Order number: 1267.120.000
