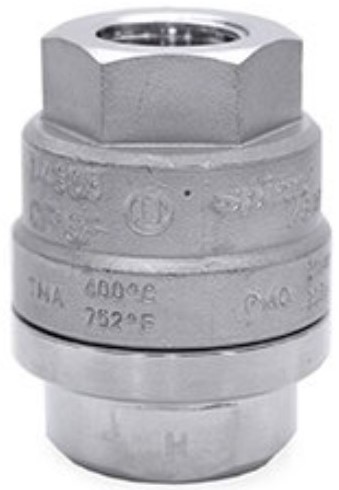

Spirax Sarco 1/2 MST21 Steam Trap BSP 'E' Fill Std

thermal capsule-
condensate separator for pure steam systems,
media-contacted parts in stainless steel,
with constant subcooling as well as
automatic steam venting over the
entire operating range, condensate amounts
up to 450 kg/h and operation under
changing operating conditions, for
installation in vertical piping for
self-draining.
Tight steam seal through self-centering
ball valve, with protective screen,
maintenance-friendly due to replaceable
capsule element set, standard subcooling STD 10K.
Connection: internal thread 1/2
: ISO 228-1
Pressure rating: PN25
Material housing: stainless steel 1.4305
Internal parts: stainless steel
Differential pressure: max. 21 bar
Flow rate: max. 450 kg/h
Manufacturer: Spirax Sarco
Type: MST21
Order number: 1267.015.000
