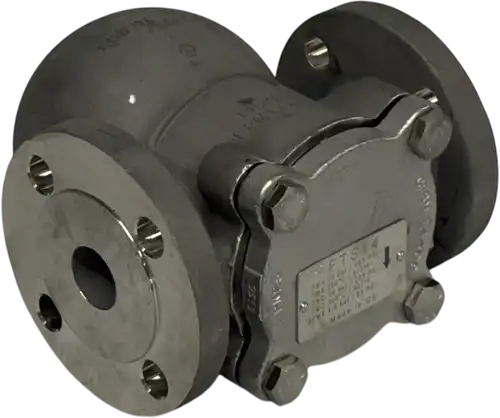

Spirax Sarco FTS14HRL-10TV, DN15, PN25, 14408 horizontal, pressure level 0-10bar

Float ball-
condensate separator for immediate,
condensate discharge of large
condensate quantities up to 800 kg/h in
start-up condition, completely made of stainless steel
for use in pure steam systems.
With automatic air vent as standard
self-centering ball valve,
installation position horizontal,
maintenance-friendly due to separate
replaceability of all internal parts,
easy change of flow direction
by twisting the housing,
standard from right/left or left/right
or from top/bottom.
Connection: Flange DN 15
Pressure level: PN25
Material housing: Stainless steel 1.4408
Internal parts: Stainless steel
Differential pressure: max. 10 bar
Flow rate: max. 400 kg/h
Manufacturer: Spirax Sarco
Type: FTS14HRL-10TV
Order number: 1844.015.200
