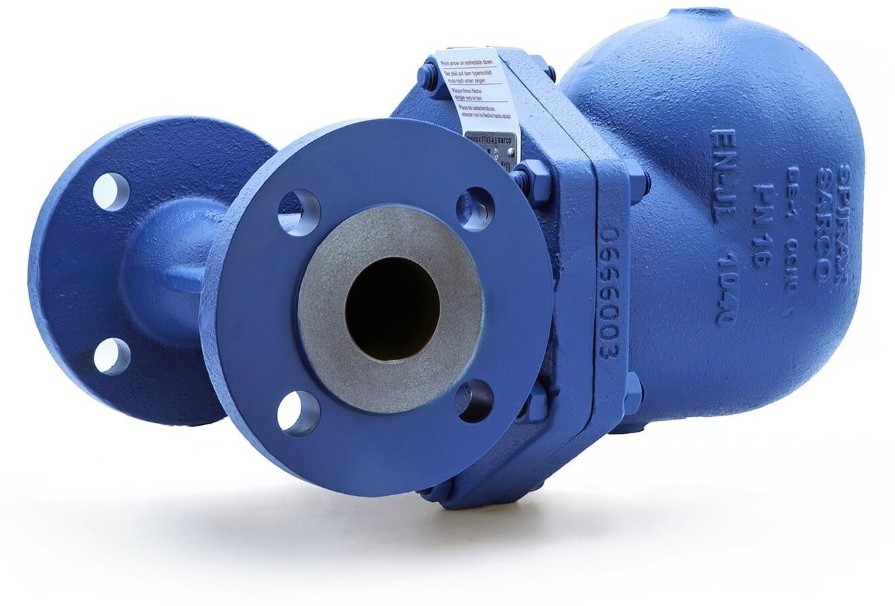

    Spirax Sarco DN25 FT43-14 TV Steam Trap PN16

    View everything from the category Steam trap
    Ask for quotationAdd to wish list
    Festo Delivery Time

    The stated delivery times are the working days or weeks indicated by the manufacturer.

    If the delivery time is critical for you, please contact us so we can verify it for you.

    Price and delivery time on request
    Add to favorites

    Why Ebora :

    • We think with you
    • Clear offers
    • Flexible and proactive
    • knowledgeable
    • Product description and specifications
    • Documents
    • Ask a Question

    Product description

    Float ball -
    Condensate separator for immediate,
    condensate discharge of large
    condensate quantities up to 3300 kg/h in
    start-up condition.
    With automatic air vent as standard
    self-centering ball valve,
    maintenance-friendly due to separate
    interchangeability of all internal parts,
    installation position horizontal,
    flow direction left/right.
    Connection: Flange DN 25
    : EN 1092-2
    Pressure level: PN16
    Material housing: Grey cast iron GG 25
    Internal parts: Stainless steel
    Differential pressure: max. 14 bar
    Flow rate: max. 1100 kg/h
    Manufacturer: Spirax Sarco
    Type: FT43H-14TV
    Order number: 1870.025.300

    Specifications

    ModelFT43
    Material Cast steel
    Size connection DN025
    Process connection Flanges DIN
    Pressure rating 16 PN
    PrincipleBall float steam trap
    PMA

    Maximal zulässiger Druck

    		PMA16 Bar g @ 120°C
    PMO

    Maximum working pressure

    		PMO13 bar g @ 195 °C
    TMA

    Maximum allowable temperature

    		TMA220 °C @ 12.1 bar g
    TMO

    Maximum Working Temperature

    		TMO220 °C @ 12.1 bar g
    PMX

    Maximum differential pressure

    		PMX14 Bar g
    Type of articleSteam traps
    Weight8300 gram
    HS code8481809990
    BrandSpirax Sarco
    CategorySteam trap
    Product code10270894
    UnitPiece (s)
