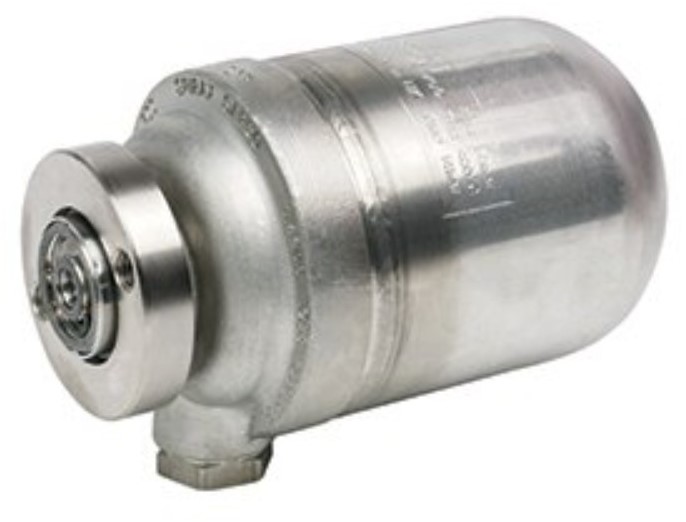

Spirax Sarco UFT32-14 Bar Steam Trap

Ball float -
Condensate separator with
universal connection for condensate-
connection unit STS17.2
For immediate condensate discharge
of large condensate quantities up to 760
kg/h in the starting state.
Housing and media-contacting parts
in stainless steel, with automatic
vent as standard, tight
steam seal through self-
centering ball valve.
Fully welded, maintenance-free
design. Quick replacement of the
complete condensate separator by
loosening only 2 screws possible.
Connection: Universal flange
Pressure level: PN50
Material housing: Stainless steel 1.4308
Internal parts: Stainless steel
Differential pressure: max. 14 bar
Flow rate: max. 310 kg/h
Manufacturer: Spirax Sarco
Type: UFT32-14
Order number: 1828.000.300
