Product description

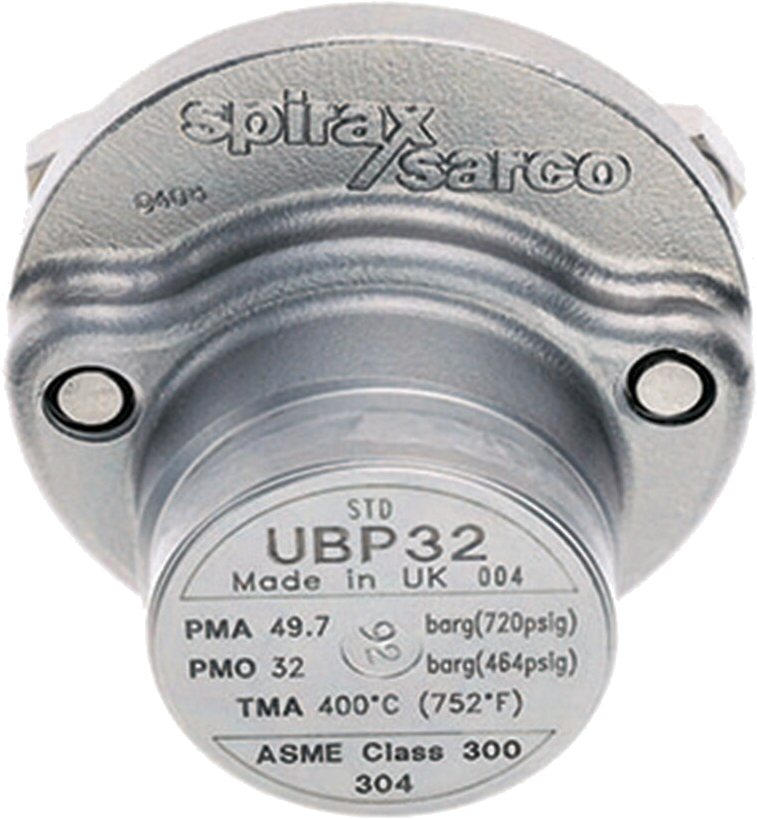

Thermetic capsule-condensate separator with universal connection
for condensate connection unit STS17.2Housing and media-contacting parts in
stainless steel, with constant subcooling and
automatic steam venting over the entire
operating range, condensate quantities up to 650 kg/h
and operation under varying operating conditions.Fully welded, maintenance-free design,
tight steam seal through self-centering
ball valve. Quick replacement of the complete
condensate separator by loosening only 2
screws possible.Standard subcooling STD 12K.Connection: universal flangePressure level: PN50Material housing: stainless steel 1.4308Internal parts: stainless steelDifferential pressure: max. 32 barFlow rate: max. 650 kg/hManufacturer: Spirax SarcoType: UBP32
Order number: 1251.000.100
