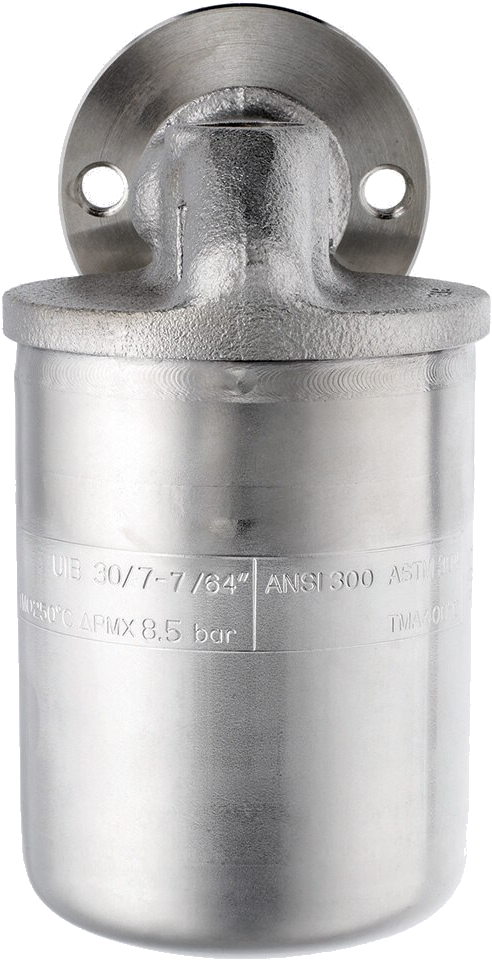

Spirax Sarco UIB30H/6 Swivel Connector Steam Trap

float-
Condensate separator with universal connection
for condensate connection unit STS17.2.
For immediate condensate discharge of large
condensate quantities of up to 450 kg/h,
insensitive to water hammer.
Housing and media-contacting parts in stainless steel,
ventilation via bell hole, tight steam seal
through self-centering ball valve.
Fully welded, maintenance-free design.
Quick replacement of the complete condensate separator
possible by loosening only 2 screws.
Connection: Universal flange
Pressure level: PN50
Material housing: Stainless steel 1.4301
Internal parts: Stainless steel
Differential pressure: max. 20 bar
Flow rate: max. 420 kg/h
Manufacturer: Spirax Sarco
Type: UIB 30H/6
Order number: 1031.000.200
