Product description

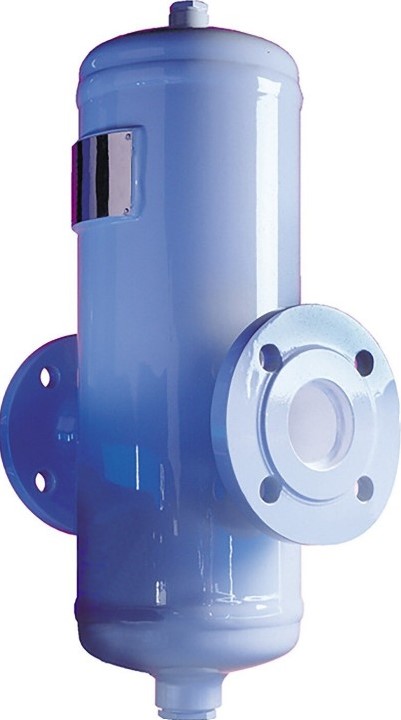

Steam dryer according to theimpact plate principle, reliably separates in the steam
carried particles that are specifically heavier,
such as condensate and dirt,
over the impact plate,
drying degree up to 98%.The steam flow is redirected over the impact plate
while the heavier condensate is fed to the outlet
through specially shaped channels. Installation in
horizontal piping before the consumer,
with recommended ball float
steamtrap FT14.Connection: Flange DN 80: EN 1092-1Drain: Internal thread Rp 1: EN 10226-1Pressure level: PN16Material housing: Steel P256GHFlow rate: according to diagramPressure: max. 14 barTemperature: max. 198 CManufacturer: Spirax SarcoType: S7Order number: 4307.080.000
