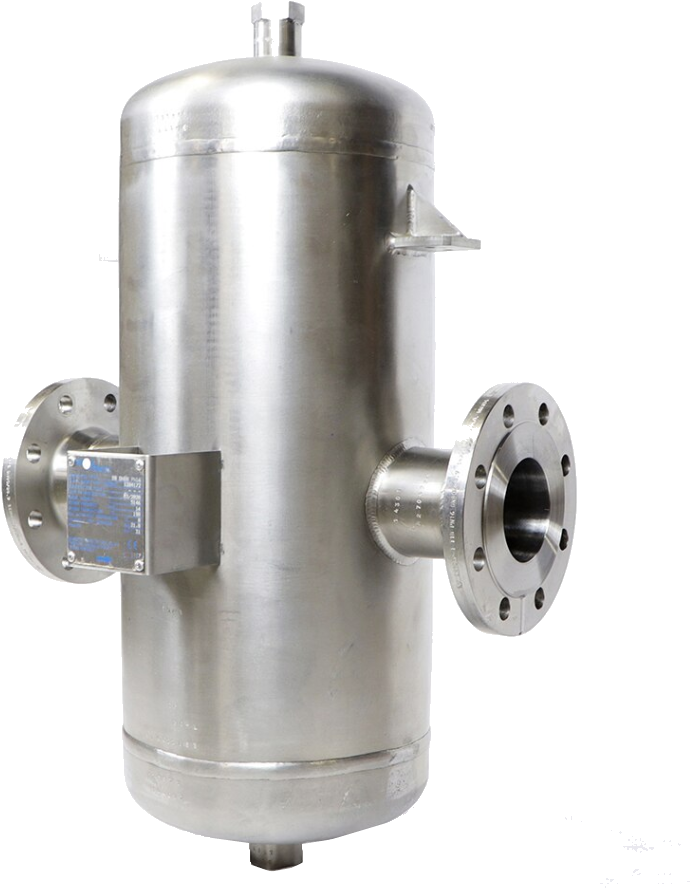

Spirax Sarco S8 DN65 PN16 304 INOX

Steam dryer according to the
impact plate principle, completely made of
stainless steel, reliably separates in the steam
carried, specifically heavier
particles, such as condensate and dirt over
the impact plate, drying degree up to 98%.
The steam flow is redirected over the impact plate
while the heavier
condensate is fed to the outlet through specially shaped channels.
Installation in
horizontal piping before the consumer,
with recommended ball float
steamtrap FTS14.
Connection: Flange DN 65
: EN 1092-1
Drain: Internal thread Rp 1
: EN 10226-1
Pressure level: PN16
Material housing: Stainless steel AISI 304
Flow rate: according to diagram
Pressure: max. 14 bar
Temperature: max. 198 C
Manufacturer: Spirax Sarco
Type: S8
Order number: 4308.065.000
