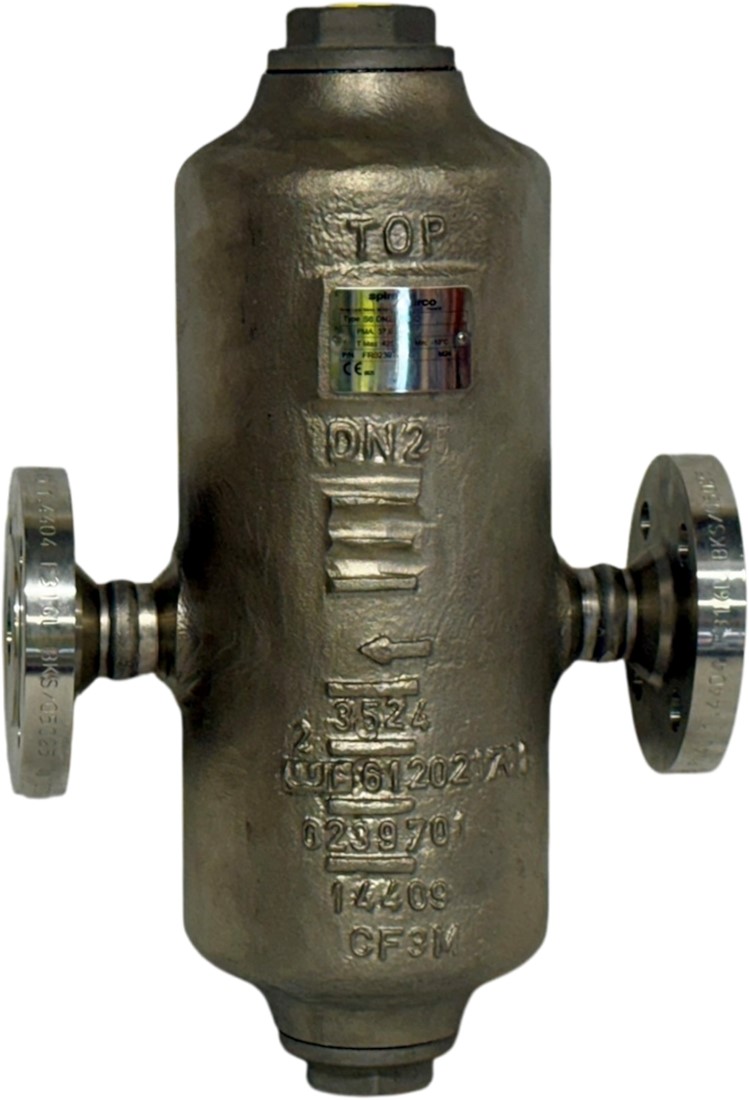

Spirax Sarco S6 DN50 PN40

Steam dryer according to the
impact plate principle, completely made of
stainless steel, reliably separates in the steam
carried, specifically heavier
particles, such as condensate and dirt
over the impact plate, drying degree up to 98%.
The steam flow is redirected over the impact plate
while the heavier
condensate is fed to the outlet through specially shaped channels.
Installation in
horizontal piping before the consumer,
with recommended ball float
steamtrap FTS14.
Connection: Flange DN 50
: EN 1092-1
Drain: Internal thread Rp 1
: EN 10226-1
Pressure level: PN40
Material housing: Stainless steel 1.4404
Flow rate: according to diagram
Pressure: max. 25.8 bar
Temperature: max. 425 C
Manufacturer: Spirax Sarco
Type: S6
Order number: 4306.050.000
