Product description

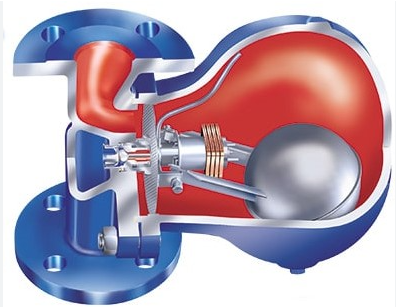

ARI-Armaturen float-steam trap CONA S, Fig. 87.631, DN 15-50, PN100, 1.7335Swimmer condensate drain with level control, for unobstructed discharge of boiling hot condensate even under extreme pressure and flow fluctuations, robust and water hammer-proof construction, for horizontal or vertical installation. With integrated backflow prevention and internal dirt filter, additional thermal control element for automatic start-up venting for condensates with temperatures = 100°C, housing with flanged cover, regulator can be replaced without dismantling the housing from the pipeline, subsequent change of installation position possible according to conversion instructions. Connection: Flange DN 15 / 20 / 25 / 40 / 50. Overall length: 300 mm / 420 mm (DN 40) / 416 mm (DN 50). Housing material: 1.7335. Cover material: 1.7357. Pressure rating: PN100. Regulator: R50 / R64 / R80. Differential pressure: max. 50 bar (R50), max. 64 bar (R64), max. 80 bar (R80). Inlet temperature: max. 525°C @ 30 bar, max. 515°C @ 50 bar, max. 504°C @ 64 bar, max. 480°C @ 80 bar. Flow rate: max. 2200 kg/h (R50), max. 2400 kg/h (R64), max. 1900 kg/h (R80). Manufacturer: ARI-Armaturen. Figure: 87.631. Article number: 876310015181.. / 876310020181.. / 876310025181.. / 876310040181.. / 876310050181..
