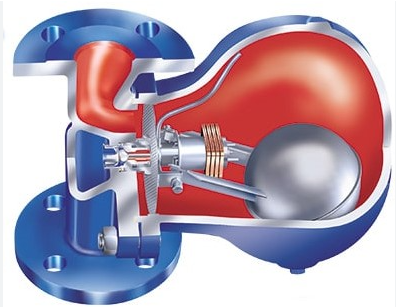

ARI-Armaturen float-steam trap CONA S, Fig. 45.631, DN 15-100, PN40, 1.0460

ARI-Armaturen float-steam trap CONA S, Fig. 45.631, DN 15-100, PN40, 1.0460
Swimmer condensate drain with level control, for trouble-free discharge of boiling hot condensate even under extreme pressure and flow fluctuations, robust and water hammer-proof construction, suitable for horizontal and vertical installation. With integrated backflow prevention and internal dirt filter, additional thermal control element for automatic start-up venting, housing with flanged cover, regulator can be replaced without dismantling the housing from the pipeline, subsequent change of installation position possible according to conversion instructions. Connection: Flange DN 15 / 20 / 25 / 40 / 50 / 65 / 80 / 100. Overall length: 150 mm / 160 mm (DN 25) / 230 mm (DN 40-50) / 290 mm (DN 65) / 310 mm (DN 80) / 350 mm (DN 100). Housing material: 1.0460. Cover material: 1.0619+N. Pressure rating: PN40. Regulator: R2 / R4 / R8 / R13 / R22 / R32. Regulator (= DN40): R2-S / R4-S / R8-S / R13-S. Differential pressure: max. 2 bar (R2 / R2-S), max. 4 bar (R4 / R4-S), max. 8 bar (R8 / R8-S), max. 13 bar (R13 / R13-S), max. 22 bar (R22), max. 32 bar (R32). Inlet temperature: max. 400°C @ 21 bar, max. 250°C @ 32 bar. Flow rate: dependent on nominal size, differential pressure, and regulator. Manufacturer: ARI-Armaturen. Figure: 45.631. Article number: 456310015140.. / 456310020140.. / 456310025140.. / 456310040140.. / 456310050140.. / 456310065140.. / 456310080140.. / 456310100140..
