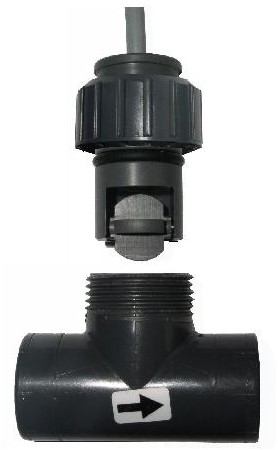

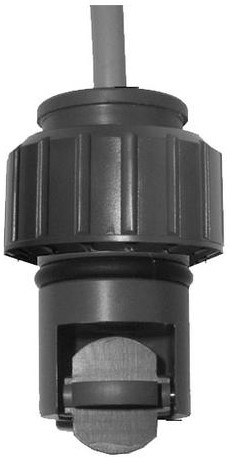

The simple and reliable paddlewheel technology has been moved into this MINIFLOW sensor type FLS F3.10, designed for use with every kind of solid-free liquids. The sensor can measure flow from 0.25 m/s (0.8 ft/s) producing a frequency output signal highly repeatable. A rugged construction and a proven technology guarantee exceptional performances with little or no maintenance required. The very small dimension and a special design make it suitable for installation on FIP standard Tee-fittings from DN15 to DN40 (0.5 to 1.5 in.).
Applications:
- Water treatment
- Filtration systems
- Pure water production
- Water monitoring
- Fertigation
Main features:
- IP68 enclosure
- ABS body with EPDM or FPM seal
- ABS 4-blade paddlewheel (no bearings)
- Mono-directional design
- Installation on standard FIP tees
- PVDF body version on request
Technical data:
General
General
- Pipe Size Range: DN15 to DN40 (0.5 to 1 1/2”) Please refer to Installation Fittings section for more details
- Flow Rate Range: 0.25 to 4 m/s (0.8 to 12,5 ft./s)
- Linearity: ± 1 % of full scale • Repeatability: ± 0.5 % of full scale. Minimum Reynolds Number Required: 4500
- Enclosure: IP68 • Operating Pressure:
- max 10 bar (145 psi) @ 20 °C (68°F)
- max 2 bar (30 psi) @ 70 °C (158°F)
- Operating Temperature: -20°C to 70°C (-4°F to 158°F).
- Wetted Materials:
- sensor Body: ABS (PVDF for special version)
- o-rings: EPDM or FPM
- rotor: ABS (PVDF for special version)
- shaft: 316L SS - magnets: SmCo5
Electrical
- Supply current: < 30 mA @ 24 VDC
- Output signal:
- square wave
- output frequency: 15 Hz per m/s nominal (4,6 Hz per ft/s nominal)
- output type: transistor NPN open collector
- output current: 10 mA max
- Cable length: 2 m (6,5 ft) standard, 300 m (990 ft)
Normen en goedkeuringen
• Vervaardigd volgens ISO 9001
• Vervaardigd volgens ISO 14001
• CE
• RoHS conform
• GOST R
